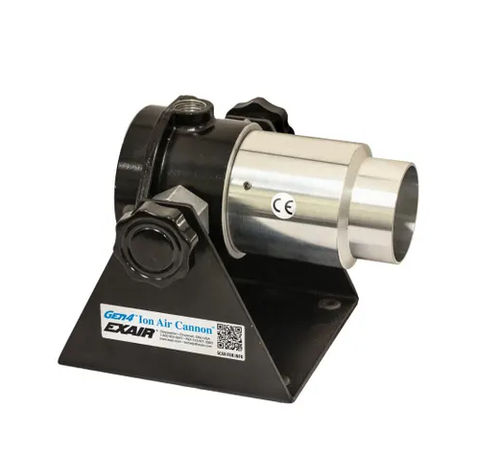

Ionizing air cannon Model 8492DX Gen4® Deluxe Kit

Overview
EXAIR's Gen4® Ion Air Cannon Kit includes everything needed to connect and start using right away! The Kit includes the Gen4 Ion Air Cannon, shim set, Model 7960 Gen4 Power Supply, filter separator and pressure regulator (with coupler). The Gen4 Ion Air Cannon neutralizes static electricity and cleans at distances up to 15 feet (4.6m) with no moving parts. It is ideal for those hard to reach spaces or confined areas that require a concentrated flow of static eliminating ions. With the pressure regulator, the air volume and velocity are infinitely adjustable over a wide range, for light to heavy duty applications.

Applications

• Bag opening - form and fill
• Clean and neutralize parts
• Neutralizing shrink wrap
• Cleaning molded parts
• Removing static on assemblies
• Neutralizing slitting operations
• Package cleaning
• Container neutralization

Advantages

• Low air consumption
• Rapid static decay
• Quiet
• Effective up to 15 feet (4.6m)
• Shockless, non-radioactive
• Compact, rugged, easy to install
• Intake can be ducted
• No moving parts - low maintenance
• Variable force and flow

Models (summary)
Ion Air Cannon are available in four different model types: Ion Air Cannon; Ion Air Cannon and Power Supply; Ion Air Cannon Kit; Deluxe Ion Air Cannon Kit
Model mapping:
Model | Ion Air Cannon | Ion Air Cannon and Power Supply | Ion Air Cannon Kit | Deluxe Ion Air Cannon Kit
8192 | 8292 | 8492 | 8492DX

Performance (selected data)
Pressure (PSIG) | BAR | Air Consumption (SCFM) | Air Consumption (SLPM) | Sound Level (dBA) | Dissipates 5kV (sec)
20 | 1.4 | 5.7 | 161 | 58 | 0.75
40 | 2.8 | 9.0 | 255 | 64 | 0.6
60 | 4.1 | 12.2 | 345 | 70 | 0.5
80 | 5.5 | 15.5 | 439 | 72 | 0.43
100 | 6.9 | 18.7 | 529 | 74 | 0.37
* Measurements at 12" (305 mm) from target

Accessories included / available

• Power Supply - Model 7960 selectable voltage Power Supply (allows selection of 115 VAC or 230 VAC input). Modular cable with electromagnetic shielding. Integrated fuse on primary. UL Component Recognized to U.S. and Canadian standards; CE and RoHS compliant.
• Shim Sets - Ion Air Cannon shipped with a .003" (0.08 mm) stainless steel shim installed. Shim sets include (1) .006" (0.15 mm) and (1) .009" (0.23 mm) stainless steel shim to increase velocity where required.

How it works
The Gen4 Ion Air Cannon incorporates a Super Air Amplifier and ionizing collar, energized by a power supply. A small amount of compressed air is injected into the barrel of the cannon inducing a high volume flow of surrounding air. A replaceable emitter point at the discharge end ionizes the entire airstream. The result is a high volume, conical flow of ionized air capable of eliminating static and cleaning at distances up to 15 feet (4.6 m). More than 90% of the ionized air is induced, producing maximum airflow at minimum air consumption.

Caractéristiques / spécifications techniques

• Model / SKU: 8492DX
• Denomination commerciale: Gen4® Ion Air Cannon™ Deluxe Kit
• Brand: EXAIR
• Power supply required: EXAIR Model 7960 or 7961 (5 kV)
• Power supply features: selectable input voltage (115 VAC / 230 VAC), modular 6' (1.83 m) power cord, lighted power switch, integrated primary fuse, multiple HV outlets
• Compressed air connection: 3/8" NPT inlet
• Emitter material: Stainless steel (replaceable emitter point)
• Metal parts: Aluminum
• Plastic parts: UL rated 94 HB
• Maximum ambient temperature: 165°F (74°C)
• Electrical: designed for use with 5 kVrms, 5 mA (max) power supply; shockless (less than 40 microamperes short-circuited)
• Safety note: Do not use near flammable materials or gases
• Performance note: Effective up to 15 feet (4.6 m); dissipates 5 kV in as little as 0.37–0.75 seconds depending on supply pressure (data measured at 12" / 305 mm from target)
• Adjustability: Pressure regulator provides infinite adjustment of air volume and velocity for light to heavy duty applications
