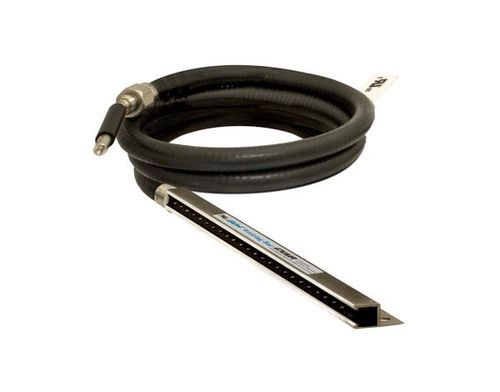

EMI-shielded anti-static bar 8036 Gen4®

armored

Overview
EXAIR’s Gen4® Ionizing Bar requires no compressed air and eliminates static electricity on surfaces within 4" (102mm) of the bar. The electrically powered Gen4 Ionizing Bar is compact to fit confined machine spaces where charge is generated and is suitable for surfaces that cannot tolerate airflow. Typical uses include paper, film and plastic applications where dust attraction, tearing, jamming or shocks to personnel occur.

Applications

• Labeling
• Bag making - form and fill
• Neutralizing shrink wrap
• Sheet fed and web presses
• Packaging
• Converting machinery
• Neutralizing slitting operations
• Textiles
• Screen printing

Advantages

• Improved performance when positioned 2" (51mm) or closer to surface
• Can minimize static charge from up to 4" (102mm) away
• Armored, electromagnetically shielded metal cable
• Integrated ground wire eliminates separate ground connection
• Stainless steel connections to power supply
• Low operating cost
• Rapid static decay
• Compact footprint for confined spaces
• Effective up to 4" (102mm)
• Shockless, non-radioactive operation
• Industrial design for machine integration
• Simple installation with mounting flange
• Low maintenance
• Delivered fully assembled

Accessories
Power supplies: Model 7960 (2 outlet) and Model 7961 (4 outlet) selectable-voltage power supplies for 115/230 VAC, 50/60Hz systems. Power supplies are UL Component recognized to U.S. and Canadian standards, and are CE and RoHS compliant. Model 7905 Static Meter allows one-hand static measurements and indicates surface voltage and polarity up to ±20 kV when measured one inch (25mm) away.

Performance
Gen4 Ionizing Bar Performance
Distance from charged surface: 0.50" (13mm) | 1" (25mm) | 2" (51mm) | 3" (76mm) | 4" (102mm)
Dissipates 5 kV* (seconds): 0.1 | 0.14 | 0.29 | 0.53 | 0.96
*Multiple bar lengths tested (3" - 48").

How It Works
The electromagnetically shielded power cable carries the 5 kVrms power supply output to each capacitively coupled stainless steel emitter point. An integrated ground wire within the cable provides a discharge path from the emitters to the bar channel. Each emitter charges surrounding air molecules, producing positive and negative ions. Ions of opposite polarity neutralize surface charge. Emitter voltage ionizes air without producing a shock if touched.

Technical specifications

• SKU: P8003
• Commercial name / Model: Gen4® Ionizing Bar™
• Effective neutralization distance: up to 4" (102mm); optimal at 2" (51mm) or closer
• Performance example (dissipate 5 kV): 0.1 s at 0.50" (13mm); 0.96 s at 4" (102mm)
• Available lengths: 3", 6", 9", 12", 18", 24", 30", 36", 42", 48", 54", 60", 72", 84", 96", 108" (76, 152, 229, 305, 457, 610, 762, 914, 1067, 1219, 1372, 1524, 1829, 2134, 2438, 2743 mm). Stock and special lengths up to 118" (3 m) available.
• Cable: includes 5' (1.52 m) armored, electromagnetically shielded cable with assembled connector
• Power supply required: EXAIR Model 7960 or 7961 Power Supply (5 kV). Power supplies include modular 6' (1.83 m) power cord, lighted power switch, integrated primary fuse and (2) or (4) high-voltage outlets
• Electrical: for use with 5 kVrms, 5 milliamperes (max) power supply
• Electrical hazard: bars are shockless (less than 40 microamperes short-circuited). Do not use near flammable materials or gases.
• Materials of construction: metal parts - aluminum; plastic parts - UL rated 94 HB; emitters - stainless steel
• Maximum ambient temperature: 165°F (74°C)
