Ionizing air gun system Model 8393 Gen4®

with filter

Overview

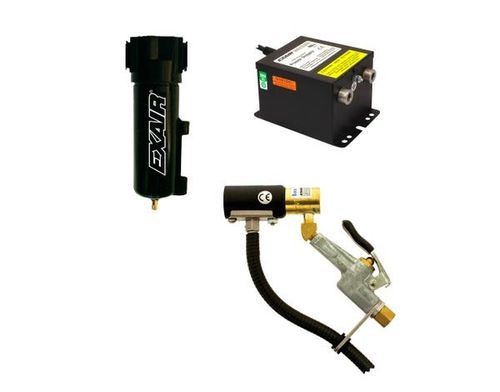

EXAIR's Gen4® Ion Air Gun System with Filter provides the basics needed for operation. It includes the Model 7960 selectable voltage power supply (115VAC/230VAC, 50/60Hz) and a Filter Separator. It combines portability, incredibly fast static decay rates, and low compressed air consumption to efficiently remove static, contaminants and dust from three dimensional parts prior to assembly, packaging, painting or finishing. The Gen4 Ion Air Gun neutralizes static electricity and cleans.

Applications

• Bag opening - form and fill
• Clean and neutralize parts
• Neutralizing shrink wrap
• Cleaning molded parts
• Removing static on assemblies
• Neutralizing slitting operations
• Package cleaning
• Container neutralization

Advantages

• Low air consumption
• Rapid static decay
• Quiet
• Effective up to 15 feet (4.6 m)
• Shockless, non-radioactive
• Compact, rugged, easy to install
• Intake can be ducted
• No moving parts - low maintenance
• Variable force and flow

Included / Package Contents
Includes: Gen4 Ion Air Gun, Model 7960 selectable voltage power supply (115VAC/230VAC, 50/60Hz), and Filter Separator (Ion Air Gun System with Filter configuration).

Models / Product Family
Ion Air Gun product family and typical contents:

• Ion Air Gun - includes the Ion Air Gun and 10' (3 m) of armored and electromagnetically shielded cable.
• Ion Air Gun System - includes an Ion Air Gun and Model 7960 Selectable Voltage Power Supply (115 VAC/230 VAC, 50/60Hz).
• Ion Air Gun System with Filter - includes the Ion Air Gun System and Filter Separator.
• Ion Air Gun Kit - includes an Ion Air Gun, Model 7960 Power Supply, Filter separator and pressure regulator (with coupler).

Accessories (examples)

• Power Supply - Model 7960 selectable voltage Power Supply (allows 115 VAC or 230 VAC input; modular cable with electromagnetic shielding; integrated primary fuse; UL Component Recognized to U.S. and Canadian Standards; CE and RoHS compliant).
• Shim Sets - additional stainless steel shims (.006" and .009") to increase velocity (factory .003" installed).

Performance (Ion Air Gun)
Pressure (PSIG | BAR) | Air Consumption (SCFM | SLPM) | Sound Level (dBA) | Dissipates 5kV* (Seconds)
20 | 1.4 | 7.4 SCFM | 209 SLPM | 67 dBA | 0.45 s
40 | 2.8 | 11.5 SCFM | 325 SLPM | 74 dBA | 0.33 s
60 | 4.1 | 15.8 SCFM | 447 SLPM | 79 dBA | 0.24 s
80 | 5.5 | 22.0 SCFM | 622 SLPM | 82 dBA | 0.18 s
100 | 6.9 | 24.0 SCFM | 679 SLPM | 85 dBA | 0.18 s
*Measured at 6" (152 mm) from target.

Specifications

• Power Supply: EXAIR Model 7960 or 7961 Power Supply (5 kV) required for Ion Air Gun operation. Power supplies equipped with a 6' (1.83 m) power cord, lighted power switch and multiple high voltage outlets.
• Compressed Air: 1/4 NPT inlet.
• Electrical: For use with 5 kVrms, 5 milliamperes (max) power supply.
• Electrical Hazard: Shockless (less than 40 microamperes short circuited). Do not use near flammable materials or gases.
• Materials of Construction: Metal parts - Aluminum; Plastic parts - UL rated 94 HB; Emitter - Stainless Steel.
• Maximum ambient temperature: 165°F (74°C).

How it works (summary)
The Ion Air Gun combines a high velocity air jet with an electrically energized (shockless) emitter point. Compressed air is injected into the air jet, inducing a high volume flow of surrounding air. The emitter ionizes the airstream, producing ionized airflow capable of neutralizing high static charges rapidly. Optional filter and regulator clean compressed air and allow infinite adjustment of airflow and velocity.

Caractéristiques / spécifications techniques

• Model (product SKU shown on page): 8393
• Commercial name: Gen4® Ion Air Gun™ System with Filter
• Included power supply: Model 7960 (selectable voltage 115VAC / 230VAC, 50/60Hz)
• Compressed air inlet: 1/4 NPT
• Required HV supply: 5 kVrms, ≤5 mA
• Emitter material: Stainless steel
• Metal construction: Aluminum
• Plastic parts rating: UL 94 HB
• Maximum ambient temperature: 165°F (74°C)
• Performance examples: at 20 PSIG — 7.4 SCFM (209 SLPM), 67 dBA, 0.45 s decay; at 100 PSIG — 24.0 SCFM (679 SLPM), 85 dBA, 0.18 s decay (measured at 6" from target)
• Key benefits: low air consumption, rapid static decay, quiet, shockless (non-radioactive), effective to 15 ft (4.6 m), no moving parts
