Ion air jet system Model 8294-9362 Gen4®

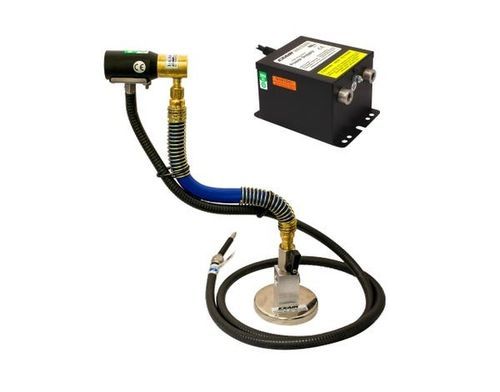

<b>Overview</b><br>The Gen4® Stay Set Ion Air Jet System Model 8294-9362 is a benchtop ionized air solution for localized static neutralization where frequent repositioning is required. The system includes the selectable-voltage EXAIR Model 7960 power supply (115 VAC/230 VAC, 50/60 Hz) and a magnetic-base Stay Set mount with a flexible hose that retains its position once set.<br><br><b>Applications</b><br><ul><li>Bag opening for form-and-fill operations</li><li>Cleaning and neutralizing parts</li><li>Neutralizing shrink wrap and film</li><li>Cleaning molded components</li><li>Removing static from assemblies</li><li>Neutralizing slitting operations</li><li>Package and container cleaning</li></ul><br><br><b>Advantages / Key Features</b><br><ul><li>Low compressed air consumption</li><li>Rapid static decay times</li><li>Quiet operation</li><li>Effective up to 15 feet (4.6 m)</li><li>Shockless, non-radioactive emitter</li><li>Compact, rugged design, easy to install</li><li>Air intake can be ducted</li><li>No moving parts – low maintenance</li><li>Variable force and flow via shims and regulator</li></ul><br><br><b>Ion Air Jet Models (summary)</b><br>Available configurations include: Ion Air Jet (gun with cable), Ion Air Jet System (includes Model 7960 power supply), Ion Air Jet System with Filter (adds filter separator), and Ion Air Jet Kit (power supply, filter separator and pressure regulator included).<br><br><b>Performance (Gen4 Ion Air Jet)</b><br>Distance: measured at 6" (152 mm) from target.<br>Pressure supply / Air consumption / Sound level / Dissipates 5 kV*<br>20 PSIG (1.4 BAR): 7.4 SCFM (209 SLPM) — 67 dBA — 0.45 seconds<br>40 PSIG (2.8 BAR): 11.5 SCFM (325 SLPM) — 74 dBA — 0.33 seconds<br>60 PSIG (4.1 BAR): 15.8 SCFM (447 SLPM) — 79 dBA — 0.24 seconds<br>80 PSIG (5.5 BAR): 22.0 SCFM (622 SLPM) — 82 dBA — 0.18 seconds<br>100 PSIG (6.9 BAR): 24.0 SCFM (679 SLPM) — 85 dBA — 0.18 seconds<br><br><b>How It Works</b><br>The Ion Air Jet combines a high-velocity air jet with a shockless, electrically energized emitter. A small amount of compressed air induces surrounding air flow through the jet; the emitter ionizes the entire airstream, producing a high-volume flow of ionized air that neutralizes static charges in fractions of a second. Optional filter and regulator clean and control compressed air, allowing fine adjustment of airflow and velocity.<br><br><b>Accessories</b><br><ul><li>Power Supply: EXAIR Model 7960 selectable-voltage power supply (5 kV) — selectable 115 VAC or 230 VAC input; modular cable with electromagnetic shielding; integrated primary fuse; UL Component Recognized (U.S. & Canada), CE and RoHS compliant.</li><li>Shim Sets: factory-installed 0.003" (0.08 mm) shim; additional shim set includes 0.006" (0.15 mm) and 0.009" (0.23 mm) for velocity adjustment.</li></ul><br><br><b>Notes</b><br>The Stay Set version features a magnetic base and a flexible hose with position memory so it holds aim until repositioned. Do not use near flammable materials or gases.<br><br><b>Technical specifications</b><br><ul><li>SKU (product model on page): 8294-9362</li><li>Denomination: Gen4® Stay Set Ion Air Jet™ System</li><li>Included power supply: Model 7960 (selectable 115 VAC / 230 VAC, 50/60 Hz)</li><li>Power supply output: 5 kVrms, max 5 mA (use with required 5 kV power supply)</li><li>Compressed air inlet: Stay Set Ion Air Jet — 1/4 NPT inlet (Ion Air Jet: 1/8 NPT)</li><li>Materials: metal parts — aluminum; plastic parts — UL 94 HB rated; emitter — stainless steel</li><li>Maximum ambient temperature: 165°F (74°C)</li><li>Performance examples (at 6" / 152 mm): see Performance block above (20–100 PSIG ranges with SCFM/SLPM, dBA, and dissipate times)</li><li>Effective range: up to 15 feet (4.6 m)</li><li>Safety: shockless emitter (less than 40 µA short-circuited); do not use near flammable materials or gases</li></ul>
