Ion air knife kit Model 8424DX Gen4® Deluxe Standard

industrialwith electronic flow controlwith pressure controller

Overview

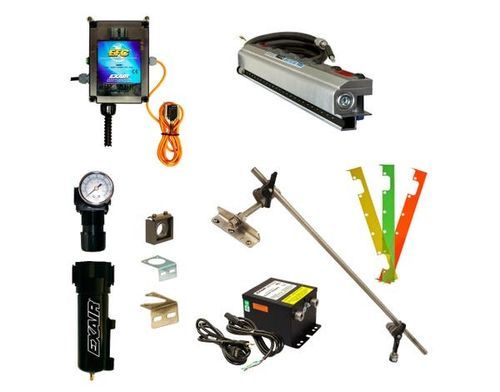

The Gen4® Deluxe Standard Ion Air Knife™ Kit contains all components required to optimize static neutralization with a Gen4 Standard Ion Air Knife™: Electronic Flow Control (EFC), universal mounting bracket, power supply, shim set, filter separator and pressure regulator. The Standard Ion Air Knife™ uses a 30:1 air amplification to deliver a sheet of ionized air to charged surfaces for static elimination on plastics, webs and sheet stock. Compared with the Gen4 Super Ion Air Knife™, air consumption and noise are higher but still appropriate for many industrial applications.

Advantages

• Improved ionization performance (approx. 30% over prior designs)
• Armored, electromagnetically shielded cable for reliable signal integrity
• Integrated grounding—no separate ground connection required
• Stainless steel connections to power supply for durability
• Reduced air consumption vs. older air knife designs
• 30:1 air amplification for a uniform sheet of air
• Low operational noise
• Effective ion neutralization up to 20 ft (6.1 m)
• Shockless, non-radioactive ionization
• Compact, rugged construction and simple installation
• Unlimited system lengths via coupling brackets
• Low maintenance with replaceable emitter design
• Adjustable force and flow using shim sets and EFC

Models
Gen4 Standard Ion Air Knives are offered in four configurations:

• Gen4 Standard Ion Air Knife™ — Standard Air Knife with Gen4 ionizing bar assembly. (Power supply not included.)
• Gen4 Standard Ion Air Knife Systems — Includes Gen4 Standard Ion Air Knife™ and Model 7960 Gen4 Power Supply (115/230 VAC, 50/60 Hz).
• Gen4 Standard Ion Air Knife Kits — Includes Gen4 Standard Ion Air Knife™, Model 7960 Gen4 Power Supply, shim set, filter separator and pressure regulator (with coupler).
• Gen4 Deluxe Standard Ion Air Knife Kits — Includes Gen4 Standard Ion Air Knife™, Model 7960 Gen4 Power Supply, Electronic Flow Control (EFC), Universal Air Knife Mounting System, shim set, filter separator and pressure regulator (with coupler).

Model / Length matrix
3" (76 mm) | 8103 | 8203 | 8403 | 8403DX
6" (152 mm) | 8106 | 8206 | 8406 | 8406DX
9" (229 mm) | 8109 | 8209 | 8409 | 8409DX
12" (305 mm) | 8112 | 8212 | 8412 | 8412DX
18" (457 mm) | 8118 | 8218 | 8418 | 8418DX
24" (610 mm) | 8124 | 8224 | 8424 | 8424DX
30" (762 mm) | 8130 | 8230 | 8430 | 8430DX
36" (914 mm) | 8136 | 8236 | 8436 | 8436DX
42" (1067 mm) | 8142 | 8242 | 8442 | 8442DX
48" (1219 mm) | 8148 | 8248 | 8448 | 8448DX

Performance summary (per foot of length)
Pressure supply (PSIG / BAR) vs Air Consumption (SCFM / SLPM) vs Sound Level (dBA) vs Dissipates 5kV (seconds):
5 PSIG (0.3 BAR): 6 SCFM (170 SLPM), 66 dBA, 0.38 seconds
10 PSIG (0.7 BAR): 8 SCFM (227 SLPM), 68 dBA, 0.28 seconds
20 PSIG (1.4 BAR): 16 SCFM (453 SLPM), 69 dBA, 0.29 seconds
40 PSIG (2.8 BAR): 24 SCFM (679 SLPM), 78 dBA, 0.21 seconds
60 PSIG (4.1 BAR): 32 SCFM (906 SLPM), 84 dBA, 0.21 seconds
80 PSIG (5.5 BAR): 41 SCFM (1,160 SLPM), 87 dBA, 0.21 seconds
100 PSIG (6.9 BAR): 49 SCFM (1,387 SLPM), 90 dBA, 0.21 seconds

Accessories

• Power Supplies — Model 7960 (2-outlet) and Model 7961 (4-outlet) for 115/230 VAC, 50/60 Hz; include power cord and lighted switch.
• Universal Air Knife Mounting System (Model 9060) — precise positioning, top or bottom mounting, articulated extension up to 30" (762 mm); stainless steel construction.
• Air Knife Plumbing Kits — supply compressed air to multiple inlets on longer knives; include hoses/pipes, fittings and pressure gauge where applicable.
• Coupling Bracket Kits — join multiple Air Knives for custom system lengths.
• Air Knife Shim Sets — adjust gap to modify force and flow (multiple shim thicknesses included).

Specifications

• Available lengths: 3", 6", 9", 12", 18", 24", 30", 36", 42", 48" (76, 152, 229, 305, 457, 610, 762, 914, 1067, 1219 mm). Special and unlimited system lengths available.
• Cable: 5 ft (1.52 m) armored, electromagnetically shielded cable included.
• Power Supply: EXAIR Model 7960 or 7961 required (5 kV). Power supplies include a 6 ft (1.83 m) power cord and lighted switch.
• Compressed air connection: 1/4 NPT outlets provided on each end of the Standard Air Knife™.
• Electrical: For use with 5 kVrms, 5 mA (max) power supply.
• Electrical hazard: Gen4 ionizing bars are shockless (less than 40 microamperes short circuited). Do not use near flammable materials or gases.
• Materials: metal parts — aluminum; plastic parts — UL 94 HB; emitters — stainless steel.
• Maximum ambient temperature: 165°F (74°C).
