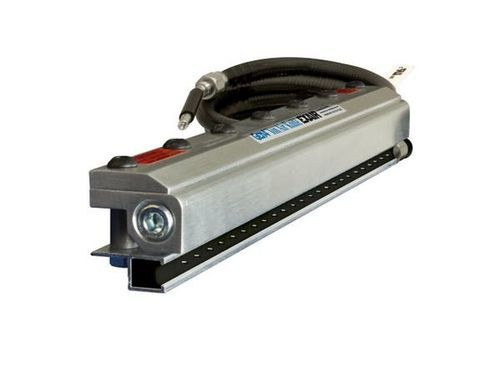

Ionizing air knife Model 8109 Gen4® Standard

Overview
EXAIR's Gen4® Standard Ion Air Knife™ uses the Standard Air Knife (30:1 air amplification) to deliver a sheet of ionized air to charged surfaces. It removes static from plastics, webs, sheet stock and other surfaces to reduce tearing, jamming and hazardous shocks. Air consumption and noise are somewhat higher than the Gen4 Super Ion Air Knife (40:1 amplification). Effective reach up to 20 ft (6.1 m).

Advantages

• 30% improved performance
• Armored, electromagnetically shielded cable
• Integrated ground—no separate ground connection required
• Stainless steel power supply connections
• 30:1 air amplification for reduced compressed air needs
• Low maintenance, shockless and non-radioactive
• Variable force and flow; effective up to 20 ft (6.1 m)
• Compact, rugged design and unlimited system lengths

Models

• Gen4 Standard Ion Air Knife — includes the Standard Air Knife and Gen4 Ionizing Bar assembly. Power supply not included.
• Gen4 Standard Ion Air Knife Systems — include a Gen4 Standard Ion Air Knife and Model 7960 Gen4 Power Supply (115/230 VAC, 50/60 Hz).
• Gen4 Standard Ion Air Knife Kits — include the knife, Model 7960 power supply, shim set, filter separator and pressure regulator (with coupler).
• Gen4 Deluxe Standard Ion Air Knife Kits — include the knife, Model 7960 power supply, EFC, Universal Air Knife Mounting System, shim set, filter separator and pressure regulator (with coupler).

Model / Length table
Length | Gen4 Standard Ion Air Knife | Gen4 Standard Ion Air Knife Systems | Gen4 Standard Ion Air Knife Kit | Gen4 Deluxe Standard Ion Air Knife Kit
3" (76mm) | 8103 | 8203 | 8403 | 8403DX
6" (152mm) | 8106 | 8206 | 8406 | 8406DX
9" (229mm) | 8109 | 8209 | 8409 | 8409DX
12" (305mm) | 8112 | 8212 | 8412 | 8412DX
18" (457mm) | 8118 | 8218 | 8418 | 8418DX
24" (610mm) | 8124 | 8224 | 8424 | 8424DX
30" (762mm) | 8130 | 8230 | 8430 | 8430DX
36" (914mm) | 8136 | 8236 | 8436 | 8436DX
42" (1067mm) | 8142 | 8242 | 8442 | 8442DX
48" (1219mm) | 8148 | 8248 | 8448 | 8448DX

Accessories (summary)
Power Supplies — Models 7960 (2-outlet) and 7961 (4-outlet) available for 115 VAC or 230 VAC, 50/60 Hz. Include 6' (1.83 m) modular power cord and lighted power switch. UL Component recognized, CE and RoHS compliant.

Universal Air Knife Mounting System — Model 9060 provides secure positioning for any EXAIR Air Knife; top mounting possible on any length, bottom mounting possible on Standard Ion Air Knives 9" (229 mm) or longer. Articulates to any position; maximum extension 30" (762 mm).

Air Knife Plumbing Kits — for knives 24" and longer; include appropriately sized hose/pipe, fittings and pressure gauge for aluminum knives.

Coupling Bracket Kits — join multiple Air Knives for extended lengths; include plates and stainless steel screws with access for compressed air inlets.

Air Knife Shim Sets — set exhaust gap to adjust force and flow. Typical shim set thicknesses for aluminum knives: .001" (0.03 mm), .002" (0.05 mm) installed, .003" (0.08 mm), .004" (0.10 mm).

Performance (per foot / 305 mm)
Pressure (PSIG) | BAR | Air Consumption (SCFM) | Air Consumption (SLPM) | Sound Level (dBA) | Dissipates 5kV (seconds)
5 PSIG | 0.3 BAR | 6 SCFM | 170 SLPM | 66 dBA | 0.38 s
10 PSIG | 0.7 BAR | 8 SCFM | 227 SLPM | 68 dBA | 0.28 s
20 PSIG | 1.4 BAR | 16 SCFM | 453 SLPM | 69 dBA | 0.29 s
40 PSIG | 2.8 BAR | 24 SCFM | 679 SLPM | 78 dBA | 0.21 s
60 PSIG | 4.1 BAR | 32 SCFM | 906 SLPM | 84 dBA | 0.21 s
80 PSIG | 5.5 BAR | 41 SCFM | 1,160 SLPM | 87 dBA | 0.21 s
100 PSIG | 6.9 BAR | 49 SCFM | 1,387 SLPM | 90 dBA | 0.21 s
* per foot (305 mm) of length. ** measurement at 6" (152 mm) from target.

Specifications / Materials

• Available lengths: 3", 6", 9", 12", 18", 24", 30", 36", 42", 48" (76–1219 mm). Special and unlimited system lengths available.
• Cable: 5' (1.52 m) armored, electromagnetically shielded cable included.
• Power Supply: EXAIR Model 7960 or 7961 (5 kV) required; supplies include 6' (1.83 m) power cord and lighted switch.
• Compressed air: 1/4 NPT outlets on each end of the Standard Air Knife.
• Electrical: for use with 5 kVrms, 5 mA (max) power supply; ionizing bars are shockless (< 40 μA short-circuited).
• Materials: metal parts — aluminum; emitters — stainless steel; plastic parts UL 94 HB.
• Maximum ambient temperature: 165°F (74°C).
• Air amplification ratio: 30:1. Effective ionized airstream reach: up to 20 ft (6.1 m).
• Non-radioactive, low maintenance, variable force and flow.

Technical specifications

• Brand: EXAIR
• Commercial model: Gen4® Standard Ion Air Knife™
• Air amplification: 30:1
• Standard lengths: 76 mm to 1219 mm (3" to 48")
• Shielded cable supplied: 5' (1.52 m)
• High-voltage supply required: Model 7960 / 7961 (5 kV)
• Air fittings: 1/4 NPT each end
• Materials: aluminum body, stainless steel emitters
• Max ambient temperature: 165°F (74°C)
