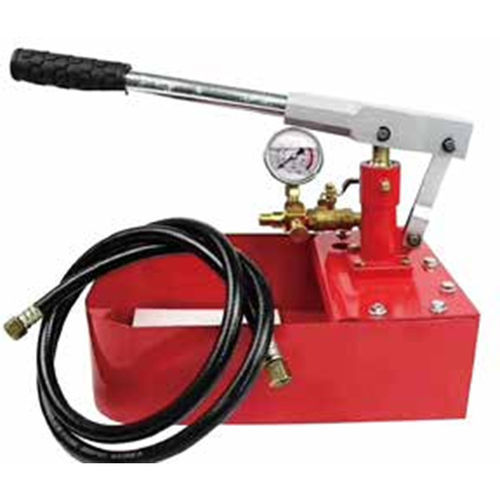

Mobile pressure test unit SD-50B

The SD-50B is a compact manual test pressure pump designed to pressurize and test oil, gas and water pipelines up to 50 bar. It is designed for field use with corrosion-resistant copper components and a robust construction suitable for pipeline worksites.

Features

• Simple structure for easy transport and use on site
• Easy manual operation
• Simple maintenance
• Copper pump body and copper outlet for corrosion and rust resistance
• Robust construction suitable for diverse worksite environments
• Supports customization: color, model and logo
• 2-year warranty and CE certification

Applications

• Plumbing and on-site pressure testing of water pipelines
• Pressure testing of oil pipelines
• Pressure testing of gas pipelines

Technical specifications

• Model: SD-50B
• Pressure: 5.0 MPa (50 bar)
• Flow volume: 12 mL
• Gross weight / Net weight: 5 kg / 4.5 kg
• Water tank capacity: 5 L
• Dimensions: 32 × 21 × 26 cm
• Materials: copper pump body and copper outlet
• Warranty: 2 years
• Certification: CE
