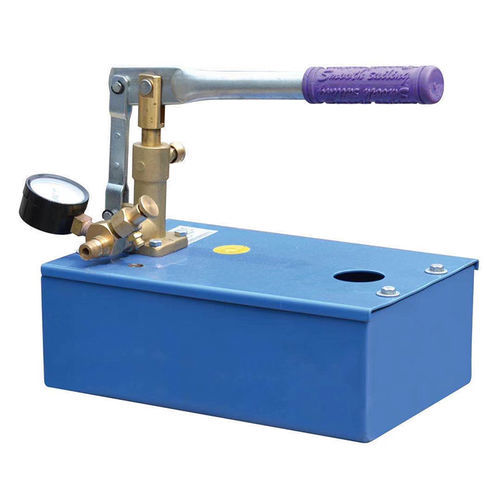

Mobile pressure test unit SD-100

for workshops

Product overview
The SD Series manual test pressure pump is designed for pressure testing oil, gas and water pipelines. Available in SD-100, SD-160 and SD-250 variants, the pump includes copper fluid-path components, a 5 L water tank, CE certification and a 2-year warranty.

Key features

• Easy to operate and maintain for field and workshop use.
• Copper parts in the pump body and water outlet for improved corrosion resistance.
• Suitable for routine pressure checks and leak detection on pipelines.
• CE certified; supplied with a 2-year warranty.
• Customization options available: color, model and logo; technical support provided.

Applications

• Plumbing and leak testing.
• Water system commissioning and maintenance.
• Oil and gas pipeline pressure testing.

Technical specifications

• Models and maximum pressure:
  • SD-100 — 10.0 MPa (100 bar); Flow per stroke: 13 mL;
  • SD-160 — 16.0 MPa (160 bar); Flow per stroke: 12 mL;
  • SD-250 — 25.0 MPa (250 bar); Flow per stroke: 11 mL;
• Water tank capacity: 5 L (all models).
• Gross weight / Net weight: 5.5 / 4.5 kg (all models).
• Dimensions (L × W × H): 32 × 20 × 26 cm (all models).
• Material: copper components at pump body and water outlet for increased corrosion resistance.
• Certifications: CE. Warranty: 2 years.
