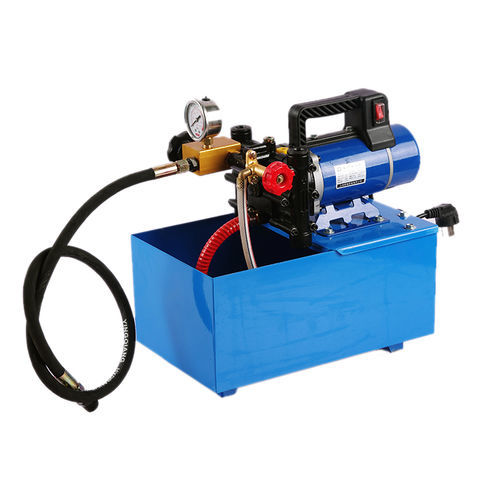

Mobile pressure test unit DSY series

Overview
The DSY Series electric test pressure pump is a portable electric pump designed to generate stable output pressure for pressure testing of oil, gas and water pipelines and pressure vessels. It is compact, energy-efficient and suitable for construction sites and maintenance operations.

Key features

• Portable, compact construction for easy transport
• Stable output pressure for accurate tests
• Low energy consumption
• Easy maintenance and operation
• Manufacturer warranty: 2 years; CE certified

Applications

• Pressure testing of pipelines (water, oil, gas)
• Pressure vessel testing
• Pipeline pressure monitoring and commissioning checks
• Use on construction sites, by plumbers, fire stations, property management and maintenance teams

Customization & support

• Supports custom color, model designation and logo
• Technical support and spare parts available

Specifications

• Series / Models: DSY-25, DSY-40, DSY-50, DSY-60, DSY-100
• Pressure ranges: DSY-25 = 0–2.5 MPa (~25 bar); DSY-40 = 0–4 MPa (~40 bar); DSY-50 = 0–5 MPa (~50 bar); DSY-60 = 0–6 MPa (~60 bar); DSY-100 = 0–10 MPa (~100 bar)
• Voltage: 110V / 220V (all models)
• Power: DSY-25/40/50 = 150W; DSY-60 = 250W; DSY-100 = 380W
• Flow volume: DSY-25 = 180 L/H; DSY-40 = 180 L/H; DSY-50 = 380 L/H; DSY-60 = 180 L/H; DSY-100 = 180 L/H
• Gross/Net weight: DSY-25/40/50 = 13.5 / 11 kg; DSY-60 = 13.5 / 12 kg; DSY-100 = 14 / 12.5 kg
• Dimensions: DSY-25/40/50 = 42 × 27 × 32 cm; DSY-60/100 = 40 × 30 × 29 cm
• Brand: MM-Tech
• Warranty: 2 years; Certification: CE
