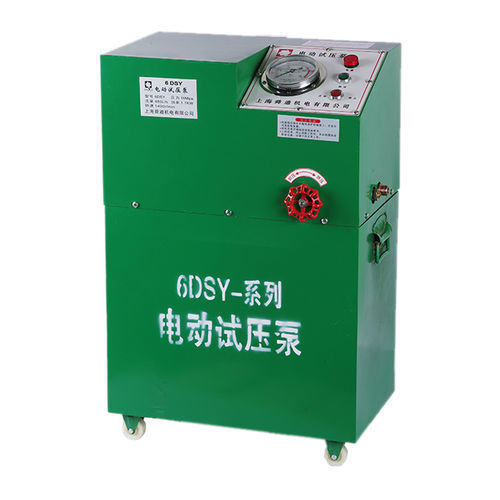

Workshop pressure test unit 6DSY seriesmobile
Add to favorites
Compare this product
Characteristics
- Options
- for workshops, mobile
Description
Overview
Key features
Models and main specifications
Technical specifications
Additional notes
- The 6DSY electric test pressure pump series is designed to generate high-pressure liquid for hydrostatic testing of pipelines, pressure vessels, boilers, valves and fire‑fighting equipment; suitable for oil, gas and water pipes.
- Compact construction, rapid liquid filling and fast initial pressurization; above 1.6 MPa the unit reduces flow automatically for a slow, stable pressure rise.
- CE certified; 2‑year warranty; customization and technical support available.
Key features
- Compact production structure and portable footprint.
- Stable output pressure with two pressure stages (high/low flow).
- Low energy consumption relative to pressure output.
- Automatic flow reduction for controlled pressure increase above 1.6 MPa.
- Applications: hydrostatic testing in laboratories and field work including aviation, defense, offshore and space projects.
Models and main specifications
- Models: 6DSY-25 / 6DSY-40 / 6DSY-60 / 6DSY-100 / 6DSY-160 / 6DSY-250 / 6DSY-400.
- Pressure ranges: 6DSY-25: 0–2.5 MPa (0–25 bar); 6DSY-40: 0–4 MPa (0–40 bar); 6DSY-60: 0–6 MPa (0–60 bar); 6DSY-100: 0–10 MPa (0–100 bar); 6DSY-160: 0–16 MPa (0–160 bar); 6DSY-250: 0–25 MPa (0–250 bar); 6DSY-400: 0–40 MPa (0–400 bar).
- Voltage: models up to 100 typically support 220/380V; higher-pressure models typically 380V.
- Power: 750 W (25–100); 1100 W (160); 1500 W (250, 400).
- Flow (two-stage): high-pressure typically 108 L/H (up to 160) or 90 L/H (250, 400); low-pressure 480 L/H (all models).
- Weight (G.W./N.W.): approx. 50/48 kg; Dimensions: approx. 54 × 35 × 76 cm (all models).
Technical specifications
- Series name: 6DSY electric test pressure pumps.
- Primary application: hydrostatic pressure testing of pipelines and pressure-bearing equipment.
- Operational behavior: fast fill and rapid initial pressurization, then automatic reduced flow for controlled pressure rise above 1.6 MPa.
- Certifications & warranty: CE certificate; 2‑year warranty.
- Customization: color, model, logo and technical support available.
Additional notes
- Designed for laboratory and field hydrostatic testing; select model according to required maximum pressure and flow.
- Contact supplier for customization, spare parts and technical assistance.
