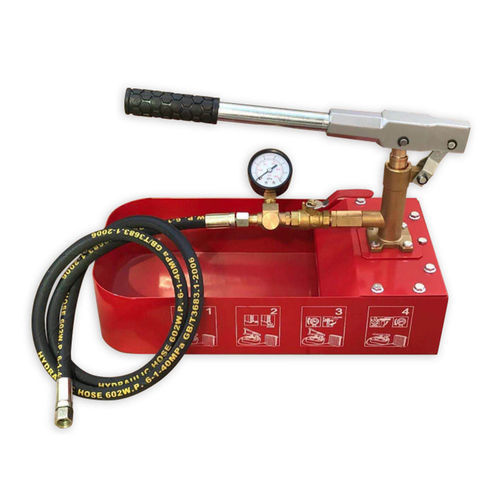

Mobile pressure test unit ZD series

Product overview
The ZD Series manual test pressure pump is a portable, corrosion‑resistant unit designed for pressure testing of oil, gas and water pipelines. Models are available for 50 bar (ZD-50) and 100 bar (ZD-100). The pump integrates automatic and manual pressure locking for secure pressure holding and uses copper components for enhanced corrosion resistance.

Key features

• Dual pressure locking (automatic + manual) for accurate pressure attainment and holding
• Copper pump body and water outlet to resist rust and corrosion
• Portable design appropriate for fieldwork, plumbing and pipeline maintenance
• CE certified; 2‑year warranty
• Customization options: color, model and logo; technical support available

Models

• ZD-50
• ZD-100

Technical specifications

• ZD-50: Pressure 5.0 MPa (50 bar); Flow volume 16 mL per stroke; G.W / N.W: 5 / 4.5 kg; Water tank: 10 L; Dimensions: 42 × 21 × 26 cm
• ZD-100: Pressure 10.0 MPa (100 bar); Flow volume 16 mL per stroke; G.W / N.W: 5 / 4.5 kg; Water tank: 10 L; Dimensions: 42 × 21 × 26 cm
• Material: Pump body and water outlet made of high‑quality copper for corrosion resistance
• Operation: Manual pump with combined automatic and manual pressure locking for precise testing
• Applications: Pressure testing of oil, gas and water pipes; suitable for plumbers and field technicians
• Packing & delivery: Supplied in secure packaging for single or bulk shipment
• Warranty & compliance: CE certified; 2‑year warranty
