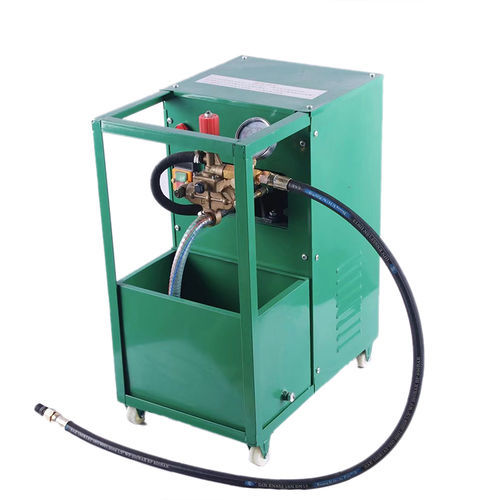

Mobile pressure test unit 3DSB Series

Compact electric test pump from the 3DSB Series designed for pressure, leak and cleaning tests on oil, gas and water pipelines and on large low-pressure vessels. Adjustable test pressure by model up to 25–100 bar. CE certified and supplied with a 2-year warranty.

Key features

• Compact footprint with high flow capacity for both low- and high-flow tests
• Stable operation designed for safety and reliable performance
• Adjustable test pressure suitable for a wide range of pipeline and vessel tests
• Can serve as a cleaning/purging machine when fitted with cleaning accessories
• Pre-operation requirement: add oil as indicated by the manufacturer
• CE certified; 2-year warranty

Applications

• Pressure and leak testing of oil, gas and water pipelines
• Strength, burst and leak tests on large low-pressure vessels (boilers, tanks, engineering installations)
• Maintenance, commissioning and cleaning in plumbing, water, oil and gas sectors

Packing and delivery

• MM-Tech ensures secure packaging and prompt shipment for single units or batches; equipment delivered intact

Technical specifications

• Series: 3DSB Series
• Models: 3DSB-25, 3DSB-40, 3DSB-100
• Pressure (per model): 3DSB-25: 0–2.5 MPa (≈25 bar); 3DSB-40: 0–4 MPa (≈40 bar); 3DSB-100: 0–10 MPa (≈100 bar)
• Voltage: 380V (all models)
• Power (per model): 3DSB-25: 1500W; 3DSB-40: 2200W; 3DSB-100: 3000W
• Flow (per model): 3DSB-25: 2200 L/H; 3DSB-40: 2200 L/H; 3DSB-100: 900 L/H
• Gross/Net weight: 3DSB-25: 44 / 36 kg; 3DSB-40: 44 / 36 kg; 3DSB-100: 56 / 48 kg
• Dimensions: 3DSB-25: 62 x 42 x 72 cm; 3DSB-40: 72 x 42 x 60 cm; 3DSB-100: 72 x 42 x 60 cm
• Certifications & Warranty: CE certificate; 2-year warranty
