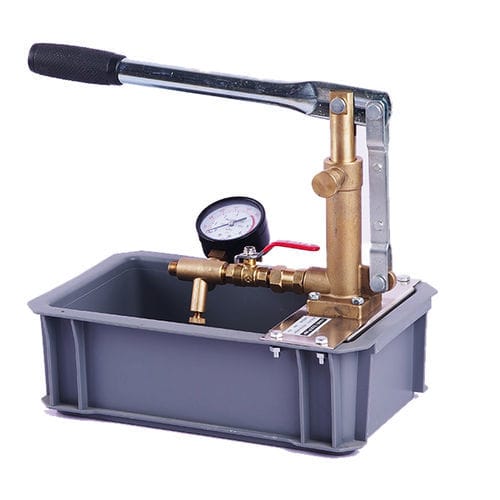

Pressure test unit SD-E series

The SD-E manual test pressure pump is designed for pressure testing oil, gas and water pipelines. Available in models SD-25E, SD-40E, SD-50E and SD-100E with pressure ratings from 25 to 100 bar. Simple structure allows straightforward operation and low maintenance. Copper pump body and water outlet reduce corrosion risk.

Key advantages and notes

• Simple mechanical design for easy operation and minimal maintenance effort.
• Copper components on pump body and water outlet to resist rust and corrosion.
• Suitable for pipeline installation and on-site commissioning tasks.
• Supplied with 2-year warranty and CE certification.

User highlights

• Operable without special tools.
• Copper pump body and outlet.
• Compact dimensions and 5 L water tank for field testing.

SD-E Manual Test Pump Data Sheet

• Model SD-25E — Pressure: 2.5 MPa / 25 Bar; Flow volume per stroke: 13 mL; G.W / N.W: 4.5 / 4 kg; Water tank: 5 L; Dimensions: 32 × 20 × 26 cm.
• Model SD-40E — Pressure: 4.0 MPa / 40 Bar; Flow volume per stroke: 13 mL; G.W / N.W: 4.5 / 4 kg; Water tank: 5 L; Dimensions: 32 × 20 × 26 cm.
• Model SD-50E — Pressure: 5.0 MPa / 50 Bar; Flow volume per stroke: 13 mL; G.W / N.W: 4.5 / 4 kg; Water tank: 5 L; Dimensions: 32 × 20 × 26 cm.
• Model SD-100E — Pressure: 10.0 MPa / 100 Bar; Flow volume per stroke: 13 mL; G.W / N.W: 4.5 / 4 kg; Water tank: 5 L; Dimensions: 32 × 20 × 26 cm.

Applications

• Pressure testing and tightness checks of pipelines in plumbing, water distribution, oil and gas installations.

Technical specifications

• Series: SD-E manual test pressure pump.
• Available models: SD-25E, SD-40E, SD-50E, SD-100E (pressure ratings 25–100 bar depending on model).
• Flow per stroke (all models): 13 mL.
• Gross / Net weight (all models): 4.5 / 4 kg.
• Water tank capacity: 5 L.
• Dimensions (all models): 32 × 20 × 26 cm.
• Materials: copper pump body and water outlet for enhanced corrosion resistance.
• Warranty: 2 years.
• Certifications: CE.
