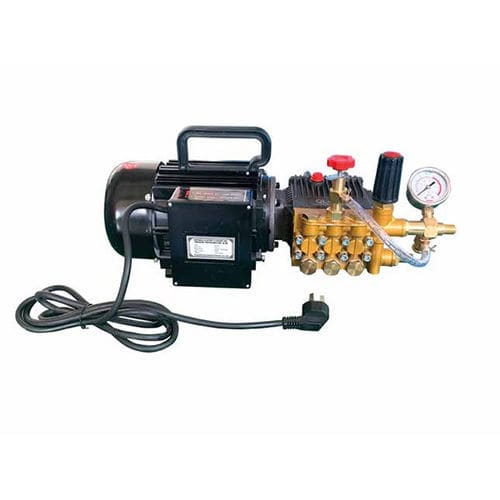

Mobile pressure test unit DC-390A

The DC-390A is a portable electric pressure test pump designed to measure and apply pressure in oil, gas and water pipelines up to 60 bar. Its compact frame and stable output make it suitable for pipeline construction, pressure vessel testing and site maintenance.

Key features

• Portable compact design for easy transport and on-site installation
• Stable output pressure for reliable test results
• Low energy consumption and simple maintenance
• Available in 220V and 380V configurations

Applications

• Pressure testing of oil, gas and water pipelines
• Pressure vessel and component leak testing
• Construction sites, plumbing and infrastructure maintenance
• Property management and facility servicing

Technical specifications

• Model: DC-390 / DC-390A
• Maximum pressure: 0–6 MPa (up to 60 bar)
• Voltage: 220V / 380V
• Power: 1600 W
• Flow rate: 600 L/h
• Frequency: 50 Hz
• Speed: 2800 R/min
• Gross weight / Net weight: 28 / 23 kg
• Dimensions: 50 x 35 x 60 cm
• Warranty: 2-year quality warranty
• Certification: CE
