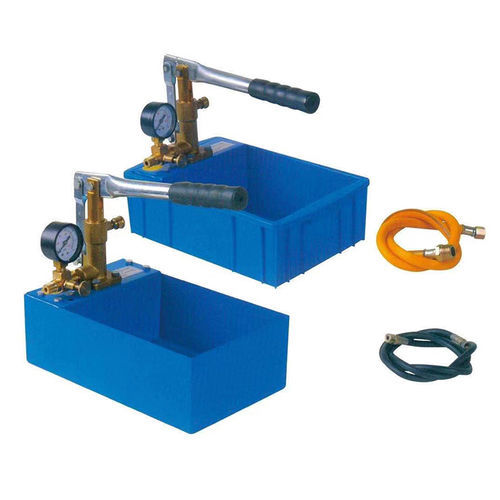

Pressure test unit SD series

Product overview
SD Series manual test pressure pump is designed to pressure-test oil, gas and water pipelines. Available in models with maximum test pressures of 16, 25, 40 and 60 bar. The pump features a compact, easy-to-operate design with a copper pump body and copper water outlet to improve corrosion resistance and suitability for harsh working environments.

Key features

• Simple operation and easy maintenance
• Copper pump body and copper water outlet for enhanced corrosion resistance
• Compact, durable design for demanding job sites
• Customization options: color, model and logo
• CE certificate and 2-year quality warranty

Applications

• Plumbing and sanitary pressure testing
• Water pipeline pressure testing
• Oil and gas pipeline pressure testing

Data sheet (models & technical table)

• Models:
  • SD-16
  • SD-25
  • SD-40
  • SD-60
• Pressure:
  • SD-16 — 1.6 MPa / 16 Bar
  • SD-25 — 2.5 MPa / 25 Bar
  • SD-40 — 4.0 MPa / 40 Bar
  • SD-60 — 6.0 MPa / 60 Bar
• Flow volume per stroke:
  • All models — 13 mL
• Weight (G.W / N.W):
  • All models — 4.5 / 4 kg
• Water tank capacity:
  • All models — 12 L
• Dimensions (all models):
  • 32 × 20 × 26 cm

Additional information

• Packing: supplied with secure packing for single or batch shipments (packing images available)
• Services: two-year warranty, pre- and after-sales technical support and professional service team
• Manufacturer: MM-Tech

Technical specifications

• Series: SD Series
• Model variants: SD-16, SD-25, SD-40, SD-60
• Maximum test pressures: 16 / 25 / 40 / 60 Bar (1.6 / 2.5 / 4.0 / 6.0 MPa)
• Flow volume per stroke: 13 mL
• Water tank: 12 L
• Dimensions: 32 × 20 × 26 cm
• Weight (G.W / N.W): 4.5 / 4 kg
• Material highlights: copper pump body and copper water outlet
• Certificates & warranty: CE certificate; 2-year quality warranty
