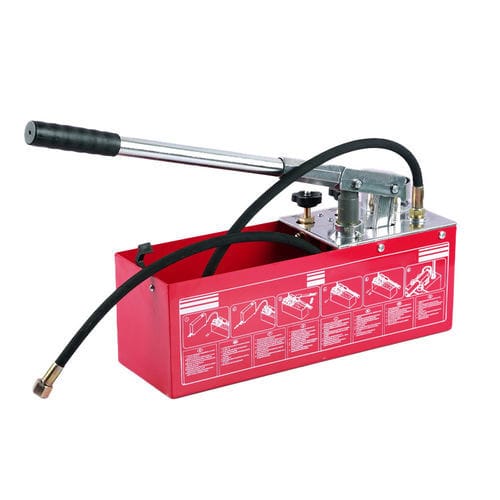

Mobile pressure test unit SD-50

Overview
The SD-50 is a portable manual pressure test pump for checking oil, gas and water pipes up to 5.0 MPa (50 bar). It features an ergonomic low-profile body, intuitive manual operation and a double-valve pressure lock for stable, repeatable readings.

Key features

• Double-valve pressure locking for precise control and leak isolation
• Ergonomic, aerodynamically styled housing for field handling
• Compact and portable with a 12 L water reservoir
• Pumping volume per stroke: 45 mL
• Clear pressure range up to 5.0 MPa / 50 Bar

Applications

• Pressure testing of oil, gas and water distribution pipes
• Plumbing and hydraulic system leak detection, commissioning and maintenance

Technical specifications

• Model: SD-50
• Max pressure: 5.0 MPa / 50 Bar
• Pumping volume per stroke: 45 mL
• Water tank capacity: 12 L
• Gross weight / Net weight: 9 kg / 8.5 kg
• Dimensions (L × W × H): 49.5 × 18 × 30 cm

Certifications & warranty

• CE certified
• 2-year manufacturer warranty

Customization & packaging

• Options for custom colors, model variants and logos
• Packaging suitable for single-unit or bulk shipment
