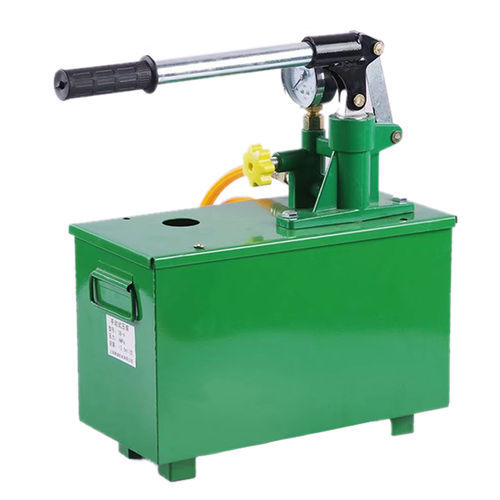

Mobile pressure test unit SD-B series

Product overview
The SD-B is a manual test pressure pump for on-site pressure testing of oil, gas and water pipelines. Available in two models (SD-40B, SD-60B) for nominal pressures up to 40 or 60 bar. The unit features copper pump body and outlet parts to reduce corrosion and is designed for simple operation and service. MM-Tech supplies the SD-B with a 2-year warranty and CE certification.

Key features

• Simple mechanical design suited to field use
• Easy operation for plumbers and site technicians
• Low-maintenance construction and straightforward component replacement
• Copper pump body and water outlet to resist rust and corrosion
• Portable size and 10 L water tank for on-site tests

Technical data

• Model family: SD-B (SD-40B, SD-60B)
• Pressure: SD-40B — 4.0 MPa (40 Bar); SD-60B — 6.0 MPa (60 Bar)
• Flow volume per stroke: 30 mL
• Water tank capacity: 10 L
• Weight (GW / NW): 5 kg / 4 kg
• Dimensions (both models): 32 × 20 × 26 cm
• Material highlights: copper pump body and copper water outlet
• Certification: CE; Warranty: 2 years (MM-Tech)

Applications

• Pressure testing and leak detection on water, oil and gas pipelines
• Commissioning and maintenance work by plumbers, installation teams and site technicians

Packaging & delivery

• Secure packaging for single units or batches to ensure undamaged delivery
• Optional customization: colors, models and logos on request
• Technical support and after-sales service available
