Mobile pressure test unit DC-E series

Overview

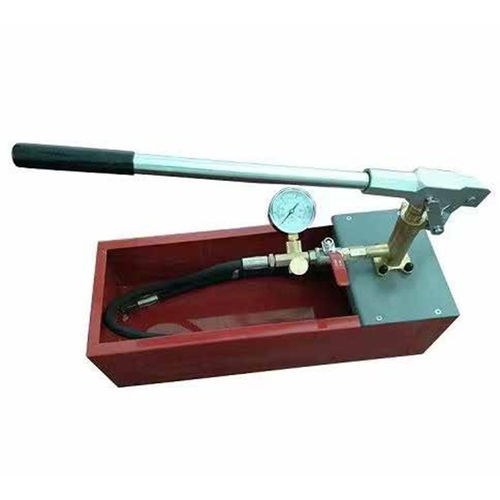

The DC-E manual test pressure pump is a portable hand-operated pump for pressure testing oil, gas and water pipelines. It provides stable high and low pressure output through a double-cylinder design and features a serviceable mechanical structure suitable for field and site use.

Key features

• Stable high and low pressure output with double-cylinder configuration
• Compact, well-designed mechanical structure for easy operation
• Easy and reliable maintenance
• 2-year warranty and CE certification
• Customizable: color, model and logo options
• Technical support available

Applications

• Pipeline construction and commissioning
• Pressure testing of oil, gas and water pipes
• Pressure vessel testing and monitoring
• Use on construction sites, renovation projects, fire stations, property and garden management, and industrial facilities

Packing & delivery

• Equipped with protective packaging to ensure secure and prompt delivery; machines arrive intact for single units and batches
• Packaging photos available on request

Technical specifications

• Series: DC-E
• Models and rated pressure: DC-25E — 2.5 MPa (25 bar); DC-50E — 5.0 MPa (50 bar); DC-100E — 10.0 MPa (100 bar)
• Flow volume (per stroke): 16 mL (all models)
• Gross weight / Net weight: 6 / 5.5 kg (all models)
• Water tank capacity: 13 L (all models)
• Dimensions (L×W×H): 53 × 20 × 29 cm (all models)
• Design: double-cylinder for high and low pressure outputs; serviceable structure for stable maintenance

Warranty & certifications

• 2-year manufacturer warranty
• CE certificate
• Customization and technical support available
