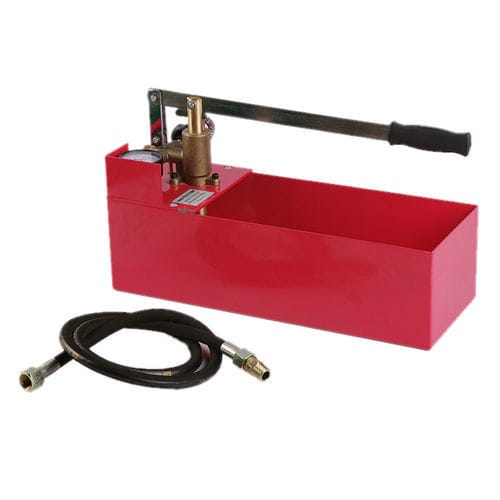

Pressure test unit EP series

The EP Series manual test pressure pump is designed for pressure testing oil, gas and water pipes up to 5.0 MPa (50 Bar). It features a copper pump body and copper water outlet for corrosion resistance and simple operation suitable for harsh work sites.

Key features

• Copper pump body and copper water outlet for rust and corrosion resistance
• User-friendly manual operation and easy maintenance
• Double-valve pressure locking function for stable pressure hold during tests

Model data (from data sheet)

• Model: EP-50 — Pressure: 5.0 MPa (50 Bar); Flow volume per stroke: 30 mL; G.W/N.W: 7.5/7 kg; Water tank: 12 L; Dimensions (L×W×H): 52.5 × 20 × 29 cm
• Model: EP-100 — Pressure: 5.0 MPa (50 Bar); Flow volume per stroke: 30 mL; G.W/N.W: 7.5/7 kg; Water tank: 12 L; Dimensions (L×W×H): 52.5 × 20 × 29 cm

Additional information

• Warranty & certification: 2-year warranty; CE certificate
• Construction: pump body and water outlet made from high-quality copper parts for improved corrosion resistance
• Applications: pressure testing for plumbing, water, oil and gas pipelines; suitable for site and maintenance teams

Technical specifications

• Series name: EP Series
• Available models: EP-50, EP-100
• Max. working pressure: 5.0 MPa (50 Bar)
• Flow volume per stroke: 30 mL
• Water tank capacity: 12 L
• Gross/Net weight: 7.5 / 7 kg
• Dimensions (L × W × H): 52.5 × 20 × 29 cm
• Materials: copper pump body and copper water outlet (anti-rust, corrosion-resistant)
• Main features: double-valve pressure locking, easy operation, suitable for harsh sites
• Warranty & compliance: 2-year warranty, CE certified
