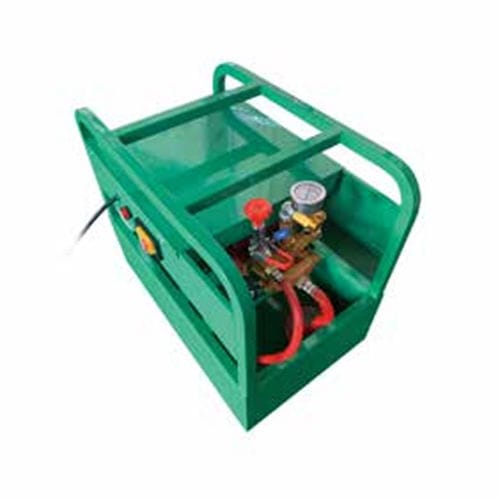

Pressure test unit 3DSB-E

The 3DSB-E is an electric pressure test pump designed for pressure, tightness and cleaning operations on oil, gas and water pipelines. It provides adjustable test pressure and a high flow rate for efficient on-site testing.

Key features

• Compact design with small volume for easier handling and transport
• High flow rate (1080 L/H) suitable for large and small flow applications
• Adjustable test pressure: 0–4 MPa (0–40 bar)
• Can perform water pressure, sealing, strength and explosion tests on large low-pressure vessels (boilers, pipelines, engineering installations)
• Can operate as a cleaning/purging machine when fitted with cleaning accessories
• Designed for safe and stable operation

Applications

• Pressure and tightness testing of water pipelines
• Pressure testing of oil pipelines
• Pressure testing of gas pipelines
• Inspection and maintenance of boilers, piping and engineering installations

Operation & maintenance

• Before use: add oil to the pump to ensure optimal performance
• Follow standard safety procedures for pressure testing and use appropriate PPE
• Use recommended cleaning accessories for flushing or cleaning tasks

Certifications & warranty

• CE certificate
• 2-year warranty provided by MM-Tech

Characteristics / Technical specifications

• Model: 3DSB-E
• Pressure: 0–4 MPa (0–40 bar)
• Voltage: 380V
• Power: 1500W
• Flow volume: 1080 L/H
• GW / NW: 40 / 35 kg
• Dimensions: 70 × 45 × 65 cm
