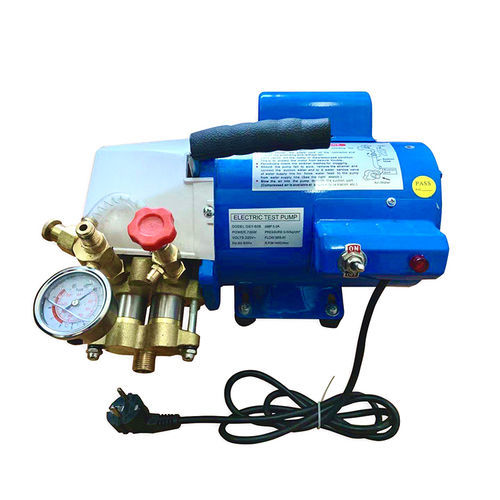

Mobile pressure test unit QXB series

QXB Series electric test pressure pump designed for testing oil, gas and water pipelines with working pressure up to 35–60 bar. The series features a compact, lightweight design, stable output pressure via differential operation and low energy consumption, suitable for onsite pressure testing and cleaning tasks.

Key features

• Compact construction for easy transport and maintenance
• Stable output pressure with differential operation to minimize fluctuations
• Low energy consumption and efficient performance
• Universal spray gun included for cleaning operations
• CE certification and 2-year quality warranty
• Customization supported: color, model and logo; technical support available

Applications

• Pipeline pressure testing for oil, gas and water systems
• Air conditioning and equipment cleaning
• Wall and vehicle engine cleaning
• Agricultural machinery and tool maintenance; pesticide spraying
• Printing machinery cleaning
• Pipeline dredging and flushing
• Food processing equipment and kitchen cleaning
• Plumbing and general utility pipe testing

Packing & delivery

• MM-Tech ensures prompt and secure packing and delivery; machines are shipped intact for single-unit or batch orders.

Technical specifications

• Models:
  • QXB-35
  • QXB-60
• Pressure:
  • QXB-35: 0–3.5 MPa (≈35 bar)
  • QXB-60: 0–6.0 MPa (≈60 bar)
• Voltage:
  • 110V / 220V
• Power:
  • QXB-35: 250 W
  • QXB-60: 400 W
• Flow volume:
  • Both models: 180 L/H
• G.W / N.W:
  • QXB-35: 13.5 / 12 kg
  • QXB-60: 17.5 / 16 kg
• Dimensions:
  • Both models: 40 × 30 × 29 cm
• Certifications & warranty:
  • CE certificate
  • 2-year quality warranty
