Workshop pressure test unit DC-100mobile
Add to favorites
Compare this product
Characteristics
- Options
- for workshops, mobile
Description
Overview
Key features
Model variants
Technical specifications
Applications
Warranty & certification
Packaging & delivery

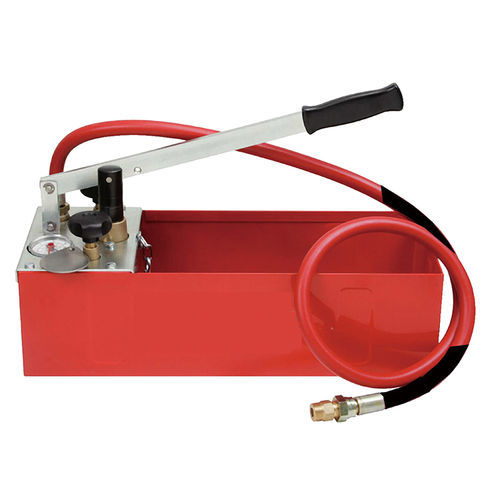

- Portable manual test pressure pump for pressure testing oil, gas and water pipe systems. Available models cover rated pressures from 10.0 MPa (100 bar) to 25.0 MPa (250 bar). Supplied with a 2-year warranty and CE certification.
Key features
- Compact, aerodynamic design for easy handling and transport
- Manual operation suitable for field and workshop testing
- Double‑valve pressure locking for secure pressure holding and accurate readings
- Flow per stroke: 45 mL (all models)
Model variants
- DC-100 — Rated pressure: 10.0 MPa (100 bar)
- DC-160 — Rated pressure: 16.0 MPa (160 bar)
- DC-250 — Rated pressure: 25.0 MPa (250 bar)
Technical specifications
- Flow volume (per stroke): 45 mL
- Gross weight / Net weight (per unit): 7.5 kg / 7.0 kg
- Water tank capacity: 12 L
- Dimensions (L × W × H): 50 × 19 × 33 cm
- Pressure locking: double‑valve pressure lock
Applications
- Pressure and leak testing for plumbing, water distribution, oil and gas piping
- On-site commissioning, maintenance and service testing in industrial and utility environments
Warranty & certification
- 2‑year quality warranty
- CE certified
Packaging & delivery
- Packaged to protect the unit during transport; shipping lead time depends on order quantity and destination
