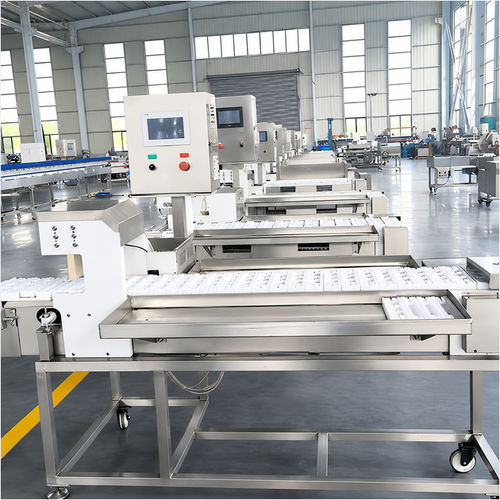

Meat skewer machine FL-2000

automaticpneumatic

Product overview
The FL-2000 automatic meat skewer machine is designed for industrial and commercial food production, enabling high-volume, hygienic threading of pre-cut meat pieces onto bamboo or metal skewers. It is suitable for restaurants, catering operations and food processing facilities that require consistent, fast skewer preparation.

How it works

• Load the meat: Place pre-cut meat pieces on the conveyor belt or in the meat tray for automated handling.
• Automatic skewer feeding: Integrated skewer magazine separates and feeds bamboo or metal sticks to the threading station.
• Press meat & insert skewers: Pneumatic pressing plates secure the meat while skewers are pushed through to form uniform kebabs.
• Finished skewers: Skewers exit ready for cooking, freezing or packaging.

Technical parameters

• Model: FL-2000
• Equipment dimensions: 2000 x 1160 x 1650 mm (length customizable)
• Power supply: 220V/50Hz
• Stick length: 25–30 cm
• Stick diameter: 2.5–3 mm
• Total power: 0.95 kW
• Compressed air: 0.6–0.8 MPa
• Stringing efficiency: 2500–3000 skewers/hour
• Equipment weight: 180 kg

Types of Automatic Meat Skewer Machines

• Semi-automatic: Manual meat loading with lever-assisted skewer threading; suitable for lower-volume operations such as small restaurants and boutique BBQ shops.
• Fully automatic: Automatic meat feeding and skewer threading with optional cutting and integration capabilities; designed for large restaurants, catering services and food processing factories.

FAQ
How many skewers per hour can an industrial skewer machine produce? Automatic machines can produce from about 1,000 up to over 5,000 skewers per hour depending on model and product size; the FL-2000 typically reaches 2500–3000 skewers/hour.
Is using a skewer machine more hygienic than manual threading? Yes. Machines reduce direct hand contact with raw meat and are built for sanitary workflows using food-grade materials.
Can a machine handle different types of meat? Yes. The machine handles chicken, beef, lamb, pork and other meats when pieces are pre-cut to the recommended size.
Can the skewer machine be integrated with other processing lines? Yes. It can be integrated with cutters, slicers or packaging lines to form an automated production workflow.

Specifications

• Model: FL-2000
• Dimensions: 2000 x 1160 x 1650 mm (customizable)
• Power: 220V/50Hz, 0.95 kW
• Air pressure: 0.6–0.8 MPa
• Stick length: 25–30 cm; diameter: 2.5–3 mm
• Capacity: 2500–3000 skewers/hour
• Weight: 180 kg
