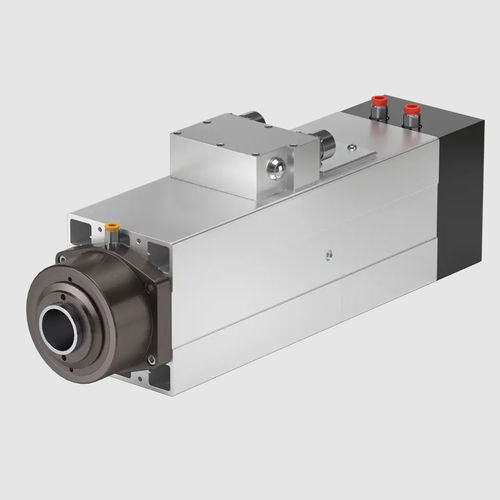

Milling motor spindle ES330machiningmotorizedair-cooled
Add to favorites
Compare this product
Characteristics
- Function
- for milling, machining
- Drive system
- motorized
- Lubrication/cooling
- air-cooled
- Other characteristics
- with automatic clamping system, with automatic tool changer, quick-change, for wood
- Rotational speed
24,000 rpm
(150,796.4474 rad.min-1)- Diameter
102.5 mm, 119.5 mm
(4 in, 4.7 in)
Description
Motor type
Asynchronous
Torque S1/S6 (40%) [Nm]
3.18 / 3.58
Power S1/S6 (40%) [kW]
4 / 4.5
Tool interface
ISO 30
Cooling
Elettric fan
Bearings lubrication
Grease
Weight [kg]
15
Coolant through shaft
No
Air tool
No
Vibration sensor
No
Thermal sensor on front bearings
No
Shaft kit
No
Aggregate anti-rotation flange
No
VIDEO
Catalogs
No catalogs are available for this product.
See all of HSD‘s catalogsOther HSD products
