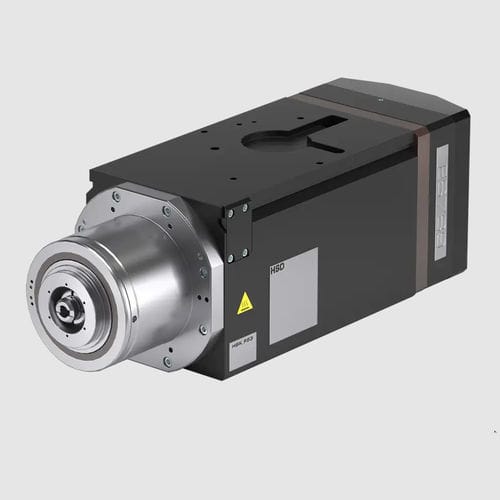

Milling motor spindle ES789machiningmotorizedliquid-cooled
Add to favorites
Compare this product
Characteristics
- Function
- milling, machining
- Drive system
- motorized
- Lubrication/cooling
- liquid-cooled
- Other characteristics
- with automatic clamping system, quick-change
- Rotational speed
24,000 rpm
(150,796.4474 rad.min-1)- Diameter
150 mm
(5.9 in)
Description
Motor type
Asynchronous
Asynchronous
Torque S1/S6 (40%) [Nm]
19.1 / 20.9
23.9 / 28.6
Power S1/S6 (40%) [kW]
15 / 18
25 / 30
Tool interface
HSK F63 / A63 / E63
HSK F63 / A63 / E63
Cooling
Liquid
Liquid
Bearings lubrication
Grease
Grease
Weight [kg]
36
36
Coolant through shaft
Yes(On request)
Yes(On request)
Air tool
Yes(On request)
Yes(On request)
Vibration sensor
No
No
Thermal sensor on front bearings
No
No
Shaft kit
Yes
Yes
Aggregate anti-rotation flange
On request
On request
