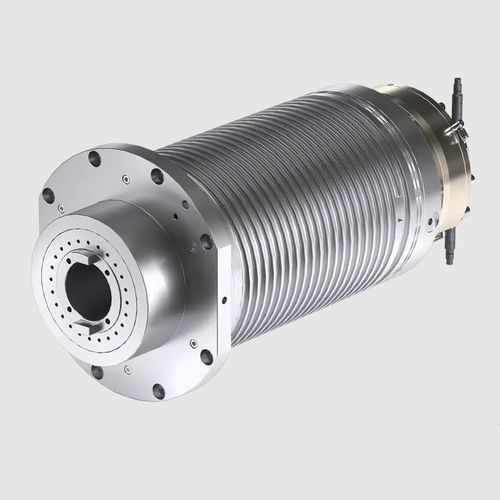

Heavy milling motor spindle ES750machiningmotorizedliquid-cooled
Add to favorites
Compare this product
Characteristics
- Function
- for heavy milling, machining
- Drive system
- motorized
- Lubrication/cooling
- liquid-cooled
- Other characteristics
- with automatic clamping system, quick-change, for marble
- Rotational speed
10,000 rpm
(62,831.8531 rad.min-1)- Diameter
245 mm
(9.6 in)
Description
Motor type
Asynchronous
Torque S1/S6 (40%) [Nm]
224 / 270
Power S1/S6 (40%) [kW]
30
Tool interface
ISO 50
Cooling
Liquid
Bearings lubrication
Grease
Weight [kg]
- 30
Coolant through shaft
Yes
Vibration sensor
No
Elongation sensor
No
Shaft clamping
No
Bearing preload function
No
Shaft kit
No
Cooling housing
No
