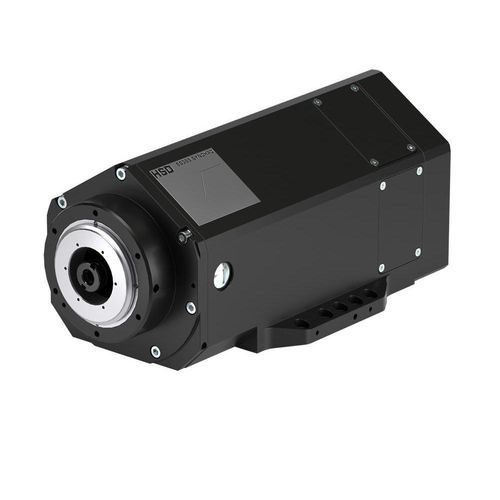

Machining motor spindle ES368

spindleelectricHSK-F 63

Overview
Discover the ES368 electrospindles that HSD designs, manufactures and supplies for precision CNC machining of composites and wood. The ES368 family offers multiple variants optimized for different power, speed and tool-interface requirements, with liquid cooling and optional sensors and accessories for industrial integration.

Applications

• Composite machining
• Woodworking

Accessories

• Tool fork for toolholders ISO30/40 and HSK F63
• Toolholders ISO30 – ER32
• Toolholders HSK F63 – ER32
• Water refrigerator (chiller)
• Water/air heat exchanger

Technical specifications

• Variants:
  ES368 - 7 kW | ES368 - 11 kW | ES368 - 3.4 kW
• Body diameter [mm]:
  ES368 - 7 kW | ES368 - 11 kW | ES368 - 3.4 kW
  □ 132x132 | □ 132x132 | □ 132x132
• Max speed [rpm]:
  20,000 | 24,000 | 36,000
• Motor type:
  Asynchronous | Synchronous | Asynchronous
• Torque S1/S6 (40%) [Nm]:
  5.6 / 6.9 | 8.7 / 10.3 | 3.4 / 4.1
• Power S1/S6 (40%) [kW]:
  7 / 8.7 | 11 / 13 | 6.5 / 7.8
• Tool interface:
  HSK F63 | HSK F63 | HSK E40
• Cooling:
  Liquid | Liquid | Liquid
• Bearings lubrication:
  Grease | Grease | Grease
• Weight [kg]:
  20 | 20 | 20
• Coolant through shaft:
  No | No | Yes (on request)
• Air tool:
  No | No | Yes (on request)
• Vibration sensor:
  Yes (on request) | Yes (on request) | Yes (on request)
• Thermal sensor on front bearings:
  Yes (on request) | Yes (on request) | Yes (on request)
• Shaft kit:
  Yes | No | No
• Anti-rotation flange (aggregate):
  On request | On request | No
