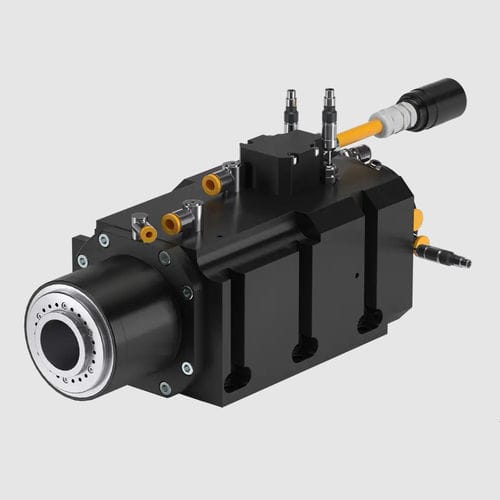

Machining motor spindle ES794 - 6kWmotorizedliquid-cooledwith automatic clamping system
Add to favorites
Compare this product
Characteristics
- Function
- machining
- Drive system
- motorized
- Lubrication/cooling
- liquid-cooled
- Other characteristics
- with automatic clamping system, with automatic tool changer, for granite, for marble, for working graphite, for glass working
- Rotational speed
16,000 rpm
(100,530.9649 rad.min-1)- Diameter
137 mm, 170 mm
(5.4 in, 6.7 in)
Description
Motor type
Asynchronous
Synchronous
Torque S1/S6 (40%) [Nm]
9.5 / 11.4
11.1 / 13.1
Power S1/S6 (40%) [kW]
6 / 7.2
14 / 16.5
Tool interface
ISO 40
ISO 40
Cooling
Liquid
Liquid
Bearings lubrication
Grease
Grease
Weight [kg]
- 35
- 35
Coolant through shaft
Yes
Yes
Vibration sensor
No
No
Elongation sensor
No
No
Shaft clamping
No
No
Bearing preload function
No
No
Shaft kit
No
No
Cooling housing
Yes
Yes
