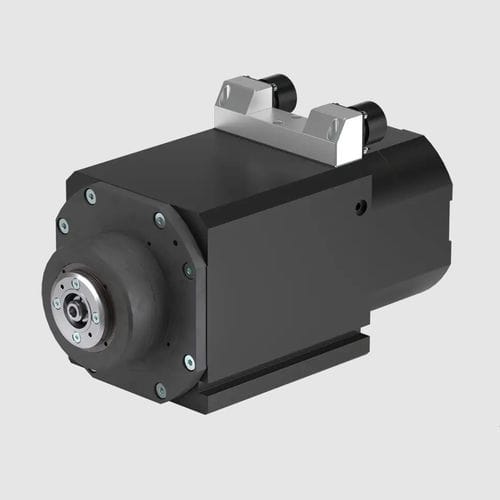

Machining motor spindle ES326 for millingmotorizedliquid-cooled
Add to favorites
Compare this product
Characteristics
- Function
- for milling, machining
- Drive system
- motorized
- Lubrication/cooling
- liquid-cooled
- Other characteristics
- high-speed, with automatic clamping system, for robots, for aluminum, for working plastic
- Rotational speed
50,000 rpm
(314,159.2654 rad.min-1)- Diameter
108 mm, 111 mm
(4.3 in, 4.4 in)
Description
Motor type
Asynchronous
Torque S1/S6 (40%) [Nm]
2.1 / 2.6
Power S1/S6 (40%) [kW]
4 / 4.8
Tool interface
HSK E25
Cooling
Liquid
Bearings lubrication
Grease
Weight [kg]
7
Coolant through shaft
No
Air tool
No
Vibration sensor
No
Thermal sensor on front bearings
No
Shaft kit
No
Aggregate anti-rotation flange
No
