Machining motor spindle ES1020

millingspindlefor turning

Product overview

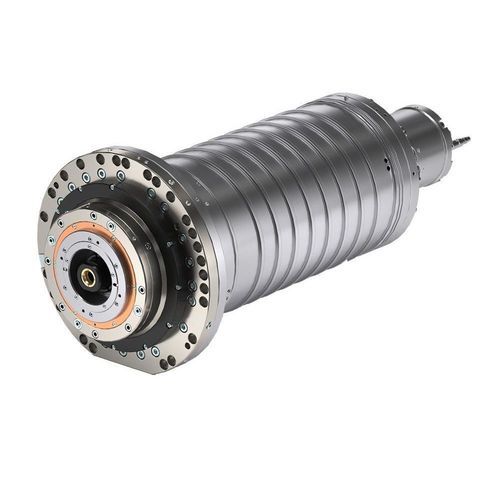

The ES1020 electrospindle from HSD Mechatronics is designed for industrial machining of metals and technical materials. It features liquid cooling, selectable bearing lubrication (grease or air-oil) and integrated sensors for vibration and elongation, plus shaft management functions for milling and turning applications.

Key product family / tag

• Metal

Technical sheet (table)
ES1020 - 52 kW
Body diameter [mm] : Ø230
Max speed [rpm] (grease / air-oil) : 8.000 / 15.000
Motor type : Asynchronous
Torque S1/S6 (40%) [Nm] : 211 / 253
Power S1/S6 (40%) [kW] : 52 / 62
Tool interface : HSK T100 / SK50 Big +
Cooling : Liquid
Bearings lubrication : Grease / Air Oil
Weight [kg] : 185
Coolant through shaft : Yes
Vibration sensor : Yes
Elongation sensor : Yes
Shaft clamping : Yes
Bearing preload function : Yes
Shaft kit : Yes
Cooling housing : Yes (Ø240 or Ø270)

Notes
Available in the 52 kW configuration; supports liquid cooling and either grease or air-oil bearing lubrication. Integrated systems include vibration and elongation sensors, and functions for shaft clamping, shaft kits and bearing preload.

Technical specifications

• Model: ES1020 (52 kW variant)
• Body diameter: Ø230 mm
• Maximum rotational speed: 8,000 rpm (grease) / 15,000 rpm (air-oil)
• Motor type: Asynchronous
• Torque (S1 / S6 40%): 211 / 253 Nm
• Power (S1 / S6 40%): 52 / 62 kW
• Tool interfaces supported: HSK T100 and SK50 Big +
• Cooling: Liquid-cooled with optional cooling housing (Ø240 or Ø270)
• Bearings lubrication options: Grease or Air Oil
• Weight: 185 kg
• Coolant through shaft: Yes
• Vibration sensor: Integrated
• Elongation sensor: Integrated
• Shaft clamping: Yes
• Bearing preload function: Yes
• Shaft kit available: Yes
