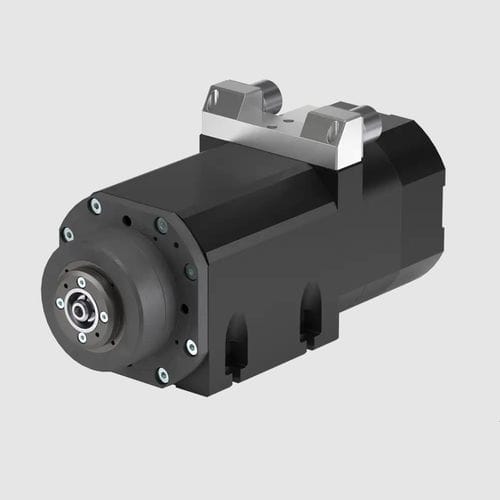

Machining motor spindle ES325 for light millingmotorizedliquid-cooled
Add to favorites
Compare this product
Characteristics
- Function
- for light milling, machining
- Drive system
- motorized
- Lubrication/cooling
- liquid-cooled
- Other characteristics
- high-speed, with automatic clamping system, for aluminum, for working plastic
- Rotational speed
50,000 rpm
(314,159.2654 rad.min-1)- Diameter
95 mm
(3.7 in)
Description
Motor type
Asynchronous
Torque S1/S6 (40%) [Nm]
0.79 / 0.95
Power S1/S6 (40%) [kW]
2 /2.4
Tool interface
HSK E25
Cooling
Liquid
Bearings lubrication
Grease
Weight [kg]
7
Coolant through shaft
No
Air tool
No
Vibration sensor
No
Thermal sensor on front bearings
No
Shaft kit
No
Aggregate anti-rotation flange
No
