Milling motor spindle ES1000
machiningturningvertical

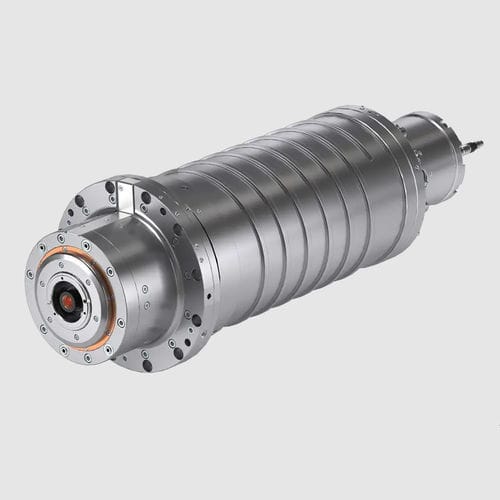

Milling motor spindle - ES1000 - HSD - machining / turning / vertical
Milling motor spindle - ES1000 - HSD - machining / turning / vertical
Milling motor spindle - ES1000 - HSD - machining / turning / vertical - image - 2
Milling motor spindle - ES1000 - HSD - machining / turning / vertical - image - 3
Add to favorites
Compare this product
Go to the HSD website for more information

Characteristics

Function
milling, machining, turning
Other characteristics
vertical
Rotational speed

Max.: 20,000 rpm
(125,663.7061 rad.min-1)

Min.: 12,000 rpm
(75,398.2237 rad.min-1)

Diameter

202 mm
(8 in)

Description

Motor type Asynchronous Asynchronous Asynchronous Torque S1/S6 (40%) [Nm] 80 / 112 85 / 135 130 / 200 Power S1/S6 (40%) [kW] 15 / 21 25 / 40 30 / 46 Tool interface HSK T63 / ISO40 HSK T63 / ISO40 HSK T63 / ISO40 Cooling Liquid Liquid Liquid Bearings lubrication Grease / Air Oil Grease / Air Oil Grease / Air Oil Weight [kg] 120 120 120 Coolant through shaft Yes Yes Yes Vibration sensor Yes Yes Yes Elongation sensor Yes Yes Yes Shaft clamping Yes Yes Yes Bearing preload function Yes Yes Yes Shaft kit Yes Yes Yes
