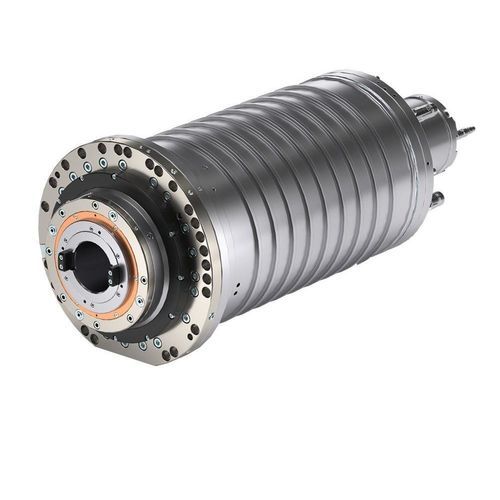

Machining motor spindle ES1040

coolingpowerspindle

Overview
Discover the ES1040 electrospindles that HSD Mechatronics designs, manufactures and supplies worldwide for high-performance machining of a wide range of materials and metals.

Models

• ES1040 - 48kW
• ES1040 - 48kW HS

Technical sheet
Variant names: ES1040 - 48kW · ES1040 - 48kW HS
Body diameter [mm]: Ø270
Max speed [rpm] (grease / air-oil): 8,000 / 15,000 (both variants)
Motor type: Asynchronous (both variants)
Torque S1/S6 (40%) [Nm]: ES1040 - 48kW = 305 / 450 · ES1040 - 48kW HS = 305 / 445
Power S1/S6 (40%) [kW]: ES1040 - 48kW = 48 / 71 · ES1040 - 48kW HS = 48 / 70
Tool interface: ES1040 - 48kW = HSK T100 / SK50 · ES1040 - 48kW HS = HSK T100 / SK50 Big+
Cooling: Liquid (both variants)
Bearings lubrication: Grease / Air-Oil (both variants)
Weight [kg]: 220 (both variants)
Coolant through shaft: Yes (both variants)
Vibration sensor: Yes (both variants)
Elongation sensor: Yes (both variants)
Shaft clamping: Yes (both variants)
Bearing preload function: Yes (both variants)
Shaft kit: Yes (both variants)
Cooling housing: Yes (Ø310) (both variants)

Options & features

• HSK T100 / SK50 or HSK T100 / SK50 Big+ tool interfaces depending on variant
• Liquid cooling system
• Bearing lubrication configurable: Grease or Air-Oil
• Integrated vibration and elongation sensors
• Shaft clamping and shaft kit available
• Bearing preload function
• Coolant-through-shaft enabled

Technical specifications

• Model: ES1040
• Available variants: ES1040 - 48kW; ES1040 - 48kW HS
• Body diameter: Ø270 mm
• Max speed: 8,000 rpm (grease) / 15,000 rpm (air-oil)
• Motor type: Asynchronous
• Torque (S1 / S6 40%): 305 Nm / 450 Nm (48kW); 305 Nm / 445 Nm (48kW HS)
• Power (S1 / S6 40%): 48 kW / 71 kW (48kW); 48 kW / 70 kW (48kW HS)
• Tool interface: HSK T100 / SK50 (48kW); HSK T100 / SK50 Big+ (48kW HS)
• Cooling: Liquid
• Bearings lubrication: Grease or Air-Oil
• Weight: 220 kg
• Coolant through shaft: Yes
• Vibration sensor: Yes
• Elongation sensor: Yes
• Shaft clamping: Yes
• Bearing preload: Yes
• Cooling housing: Ø310
