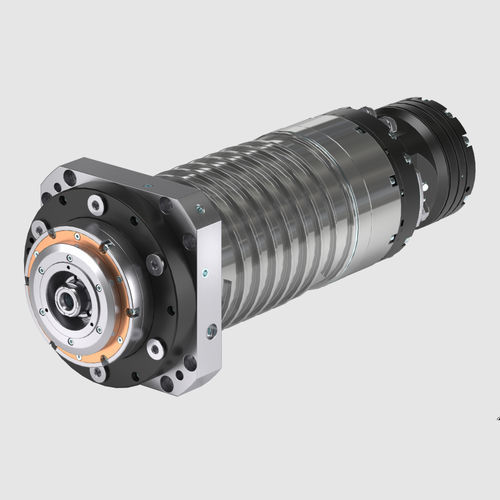

Machining motor spindle ES505 millinghydraulic driveliquid-cooled
Add to favorites
Compare this product
Characteristics
- Function
- milling, machining
- Drive system
- hydraulic drive
- Lubrication/cooling
- liquid-cooled
- Other characteristics
- with automatic clamping system, for robots, for working plastic
- Rotational speed
20,000 rpm, 24,000 rpm, 28,000 rpm
(125,663.7061 rad.min-1, 150,796.4474 rad.min-1, 175,929.1886 rad.min-1)- Diameter
140 mm
(5.5 in)
Description
Motor type
Synchronous IPM
Synchronous IPM
Torque S1/S6 (40%) [Nm]
30 /36
48 / 57.5
Power S1/S6 (40%) [kW]
25 / 30
40 / 48
Tool interface
HSK A63
HSK A63
Cooling
Liquid
Liquid
Bearings lubrication
Grease / Air Oil
Grease / Air Oil
Weight [kg]
35
40
Coolant through shaft
Yes
Yes
Vibration sensor
Yes
Yes
Elongation sensor
Yes
Yes
Shaft clamping
No
No
Bearing preload function
No
No
Shaft kit
No
No
Cooling housing
On request
On request
