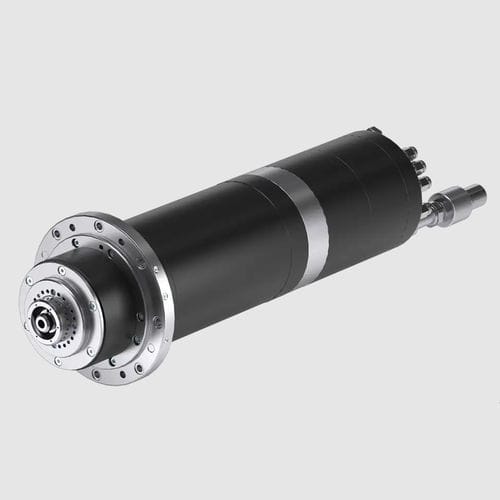

Machining motor spindle ES334tappingmotorizedliquid-cooled
Add to favorites
Compare this product
Characteristics
- Function
- machining, tapping
- Drive system
- motorized
- Lubrication/cooling
- liquid-cooled
- Other characteristics
- with automatic clamping system, for aluminum, for working plastic
- Rotational speed
30,000 rpm
(188,495.5592 rad.min-1)- Diameter
120 mm
(4.7 in)
Description
Motor type
Asynchronous
Asynchronous
Torque S1/S6 (40%) [Nm]
5,7 / 6,8
5,7 / 6,8
Power S1/S6 (40%) [kW]
3,6 / 4,3
3,6 / 4,3
Tool interface
BT30 / HSK E40
BT30 / HSK E40
Cooling
Liquid
Liquid
Bearings lubrication
Grease / Air Oil
Grease
Weight [kg]
25
25
Coolant through shaft
Yes
On request
Vibration sensor
No
No
Elongation sensor
No
Shaft clamping
No
Bearing preload function
No
Shaft kit
No
No
Cooling housing
-
Air tool
No
Thermal sensor on front bearings
No
Aggregate anti-rotation flange
No
