Cutting motor spindle ES779

for productionfor drillingmachining

Overview

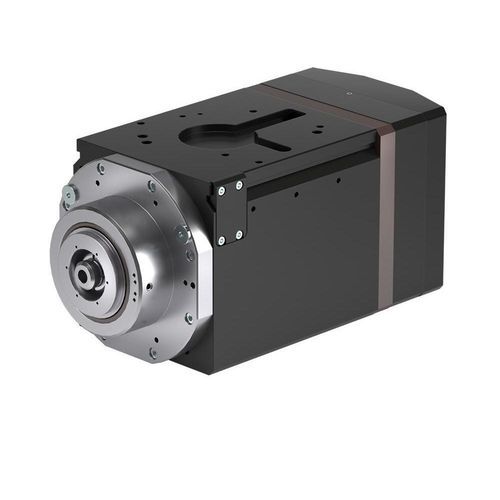

Discover the ES779 electrospindles designed and manufactured by HSD Mechatronics for machining various materials, including composites and wood. The ES779 family is offered in multiple power variants and configurations to meet different application requirements.

Technical sheet
Model | ES779 - 10kW | ES779 - 10kW | ES779 - 15kW | ES779 - 15kW | ES779 - 22kW
Body diameter [mm] | □ 150x150 | □ 150x150 | □ 150x150 | □ 150x150 | □ 150x150
Max speed [rpm] | 24000 | 15000 | 24000 | 18000 | 24000
Motor type | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Synchronous
Torque S1/S6 (40%) [Nm] | 12.7 / 15.3 | 12.7 / 15.3 | 11.9 / 14.3 | 11.9 / 14.3 | 20 / 22.6
Power S1/S6 (40%) [kW] | 10 / 12 | 10 / 12 | 15 / 18 | 15 / 18 | 22 / 25
Tool interface | HSK F63 | HSK E63 | HSK F63 | HSK A63 / E63 | HSK F63 / A63 / E63
Cooling | Liquid | Liquid | Liquid | Liquid | Liquid
Bearings lubrication | Grease | Grease | Grease | Grease | Grease
Weight [kg] | 31 | 31 | 31 | 31 | 31
Coolant through shaft | Yes (on request) | Yes (on request) | Yes (on request) | Yes (on request) | Yes (on request)
Air tool | Yes (on request) | Yes (on request) | Yes (on request) | Yes (on request) | Yes (on request)
Vibration sensor | No | No | No | No | No
Thermal sensor on front bearings | No | No | No | No | No
Shaft kit | Yes | Yes | Yes | Yes | No
Aggregate anti-rotation flange | On request | On request | On request | On request | On request

Accessories

• Tool fork for toolholders ISO30/40 and HSK F63
• Toolholders ISO30 - ER32
• Toolholders HSK F63 - ER32
• Water chiller
• Water/air heat exchanger

Related products

• Drilling aggregate
• Milling aggregate
• Cutting aggregate
• Floating aggregate
• MK250
• HS673
• HS675
• HS655

Specifications

• Brand: HSD Mechatronics
• Commercial designation (model): ES779
• Available power variants: 10 kW, 15 kW, 22 kW (S1 / S6 ratings shown in technical table)
• Max spindle speed: up to 24000 rpm (varies by configuration)
• Body diameter: □ 150x150 mm
• Motor type: Asynchronous or Synchronous depending on variant
• Torque (S1 / S6 40%): ranges from 11.9 to 22.6 Nm depending on variant
• Tool interfaces supported: HSK F63, HSK E63, HSK A63, ER32 (depending on configuration)
• Cooling: liquid cooling (standard across variants)
• Bearings lubrication: grease
• Weight: approx. 31 kg
• Coolant-through-shaft: available on request
• Air tool option: available on request
• Vibration sensor: not present
• Front-bearing thermal sensor: not present
• Shaft kit: available for most variants
• Aggregate anti-rotation flange: available on request
