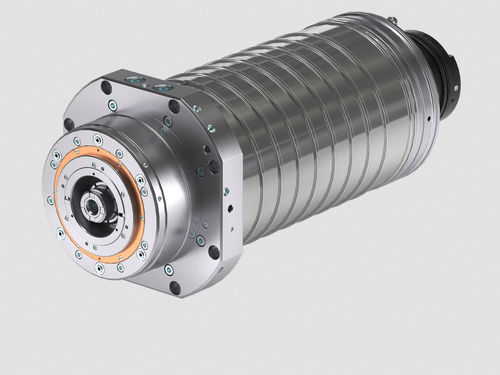

The ES514 electrospindle, designed and manufactured by HSD, is a high-power asynchronous electrospindle for heavy industrial metal machining. Application: Metal.

Technical sheet (table)
ES514 - 34 kW
Body diameter [mm] - Ø230
Max speed [rpm] (grease / air-oil) - 8,000 / 10,000
Motor type - Asynchronous
Torque S1/S6 (40%) [Nm] - 191 / 229
Power S1/S6 (40%) [kW] - 34 / 31
Tool interface - HSK A100
Cooling - Liquid
Bearings lubrication - Grease
Weight [kg] - 150
Coolant through shaft - Yes
Vibration sensor - Yes
Elongation sensor - On request
Shaft clamping - On request
Bearing preload function - No
Shaft kit - No
Cooling housing - On request

Features

• High-power electrospindle suited for heavy industrial machining
• Asynchronous motor delivering up to 34 kW (S1) with S6 ratings available
• Dual max-speed configurations depending on lubrication/cooling (grease 8,000 rpm / air-oil 10,000 rpm)
• Large body diameter (Ø230 mm) and substantial mass (150 kg) for enhanced machining stability
• HSK A100 tool interface for high-speed, high-precision tooling
• Liquid cooling and coolant-through-shaft capability for integration of process coolant
• Grease-lubricated bearings; vibration sensor standard; elongation sensor and shaft clamping available on request

Technical specifications

• Model: ES514
• Body diameter: Ø230 mm
• Max speed (grease / air-oil): 8,000 / 10,000 rpm
• Motor type: Asynchronous
• Torque S1/S6 (40%): 191 / 229 Nm
• Power S1/S6 (40%): 34 / 31 kW
• Tool interface: HSK A100
• Cooling: Liquid
• Bearings lubrication: Grease
• Weight: 150 kg
• Coolant through shaft: Yes
• Vibration sensor: Yes
• Elongation sensor: On request
• Shaft clamping: On request
• Bearing preload function: No
• Shaft kit: No
• Cooling housing: On request
