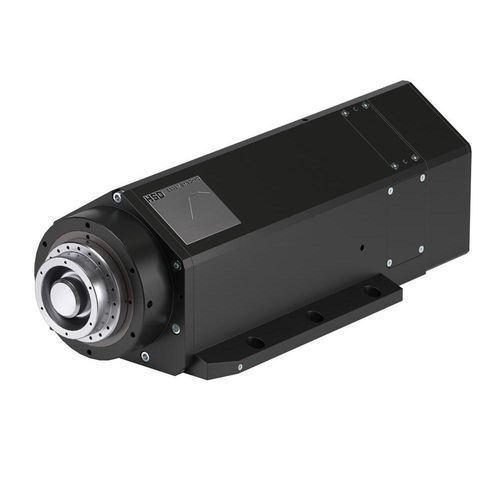

Machining motor spindle ES367

spindleAC motorHSK

Product overview
Discover the ES367 electrospindle designed for industrial machining operations. The ES367 is suitable for processing wood, composites and other materials and is part of HSD's high-performance machining range.

Technical sheet
Variant: ES367 - 18 kW
Body diameter [mm]: □ 132x132
Max speed [rpm]: 24,000
Motor type: Synchronous
Torque S1/S6 (40%) [Nm]: 21.5 / 25.8
Power S1/S6 (40%) [kW]: 18 / 21.6
Tool interface: HSK E63
Cooling: Liquid
Bearings lubrication: Grease
Weight [kg]: 25
Coolant through shaft: No
Air tool: No
Vibration sensor: Available on request
Thermal sensor on front bearings: Available on request
Shaft kit: No
Aggregate anti-rotation flange: Available on request

Accessories

• Tool fork for toolholders ISO30/40 and HSK F63
• Toolholders ISO30 - ER32
• Toolholders HSK F63 - ER32
• Water chiller
• Water/air heat exchanger

Related products

• HS580

Technical specifications

• Body diameter: □ 132x132 mm
• Maximum speed: 24,000 rpm
• Motor type: Synchronous
• Torque (S1 / S6 40%): 21.5 Nm / 25.8 Nm
• Power (S1 / S6 40%): 18 kW / 21.6 kW
• Tool interface: HSK E63
• Cooling: Liquid
• Bearings lubrication: Grease
• Weight: 25 kg
• Coolant through shaft: No
• Air tool: No
• Vibration sensor: Available on request
• Thermal sensor on front bearings: Available on request
• Shaft kit: No
• Aggregate anti-rotation flange: Available on request
