Milling motor spindle ES510
machiningliquid-cooledwith automatic clamping system

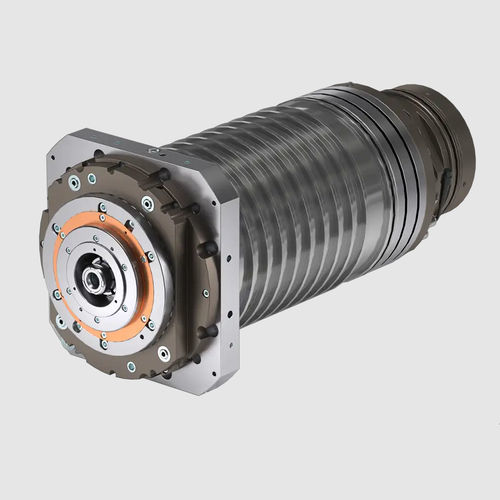

Milling motor spindle - ES510 - HSD - machining / liquid-cooled / with automatic clamping system
Milling motor spindle - ES510 - HSD - machining / liquid-cooled / with automatic clamping system
Milling motor spindle - ES510 - HSD - machining / liquid-cooled / with automatic clamping system - image - 2
Add to favorites
Compare this product
Go to the HSD website for more information

Characteristics

Function
milling, machining
Lubrication/cooling
liquid-cooled
Other characteristics
with automatic clamping system, for aluminum
Rotational speed

18,000 rpm, 24,000 rpm
(113,097.3355 rad.min-1, 150,796.4474 rad.min-1)

Diameter

180 mm
(7.1 in)

Description

电机类型 Asynchronous Asynchronous Synchronous Synchronous Synchronous Asynchronous 扭矩 S1/S6 (40%) [Nm] 38 / 46 48 / 57 67 / 87,5 90 / 120 95,5 / 124 38 / 46 功率 S1/S6 (40%) [Kw] 24 / 28,8 30 / 36 42 / 55 50 / 67,5 50 / 65 24 / 28,8 刀具接口 HSK A63 HSK A63 HSK A63 HSK A63 HSK A63 HSK A63 轴承润滑 Grease / Air Oil Grease / Air Oil Grease / Air Oil Grease / Air Oil Grease / Air Oil Grease / Air Oil 重量 [kg] 65 65 65 65 65 65 中心出水 Yes Yes Yes Yes Yes Yes(with housing) 振动传感器 Yes (with housing) Yes (with housing) Yes (with housing) Yes (with housing) Yes (with housing) No Elongation sensor On request On request On request On request On request Shaft clamping No No No No No Bearing preload function No No No No No 中心轴组件 No No No No No
