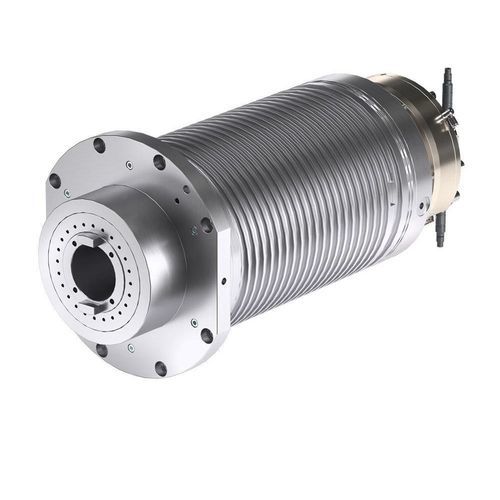

Machining motor spindle ES750

spindlehigh-powerindustrial

Overview
Discover the ES750 electrospindles that HSD designs, manufactures and supplies worldwide for machining a broad range of materials and metals.

Product summary
ES750 electrospindle — high-power electrospindle for heavy-duty industrial machining applications, available with liquid cooling and ISO 50 tool interface.

Accessories

• Pullstud for ISO 40 HSD toolholder
• Pullstud for CAT40 HSD toolholder
• Water refrigerator (chiller)
• Water/air heat exchanger

Technical sheet (table)
ES750 - 30 kW
Body diameter [mm]: Ø245
Max speed [rpm]: 10,000
Motor type: Asynchronous
Torque S1/S6 (40%) [Nm]: 224 / 270
Power S1/S6 (40%) [kW]: 30
Tool interface: ISO 50
Cooling: Liquid
Bearings lubrication: Grease
Weight [kg]: approx. 30
Coolant through shaft: Yes
Vibration sensor: No
Elongation sensor: No
Shaft clamping: No
Bearing preload function: No
Shaft kit: No
Cooling housing: No

Characteristics / specifications

• Model: ES750
• Rated power (S1 / S6 40%): 30 kW
• Body diameter: Ø245 mm
• Maximum speed: 10,000 rpm
• Motor type: Asynchronous
• Torque (S1 / S6 40%): 224 / 270 Nm
• Tool interface: ISO 50
• Cooling: Liquid (coolant-through-shaft supported)
• Bearings lubrication: Grease
• Approx. weight: 30 kg
• Coolant through shaft: Yes
• Vibration sensor: No
• Elongation sensor: No
• Shaft clamping: No
• Bearing preload function: No
• Shaft kit: No
• Cooling housing: No
