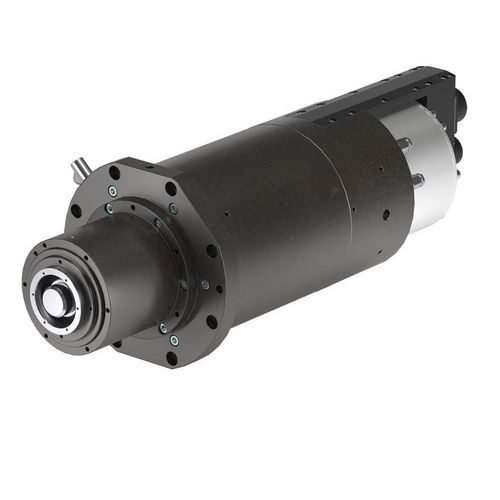

Production motor spindle ES884 series

machiningspindleAC motor

Product overview
Discover the ES884 electrospindles by HSD, designed for machining a wide range of materials including wood and metals. Suitable for ATC systems and industrial CNC applications, available in two power variants to match different production requirements.

Available variants
ES884 - 16 kW | ES884 - 19 kW

Accessories

• Tool fork for toolholders ISO30/40 and HSK F63
• Toolholders ISO30 - ER32
• Toolholders HSK F63 - ER32
• Water chiller
• Water/air heat exchanger

Technical sheet (summary)
Variants: ES884 - 16 kW | ES884 - 19 kW
Body diameter [mm]: Ø170 | Ø170
Max speed [rpm]: 15000 | 15000
Motor type: Asynchronous | Asynchronous
Torque S1/S6 (40%) [Nm]: 19 / 21.5 | 24.2 / 29
Power S1/S6 (40%) [kW]: 16 / 18 | 19 / 22.8
Tool interface: HSK E63 | HSK E63
Cooling: Liquid | Liquid
Bearings lubrication: Grease | Grease
Weight [kg]: 57 | 57
Coolant through shaft: No | No
Air tool: No | No
Vibration sensor: No | No
Thermal sensor on front bearings: No | No
Shaft kit: Yes | Yes
Aggregate anti-rotation flange: On request | On request

Characteristics / technical specifications

• Model: ES884 (available in 16 kW and 19 kW versions)
• Body diameter: Ø170 mm
• Maximum speed: 15,000 rpm
• Motor type: Asynchronous motor
• Torque (S1 / S6 40%): 19 / 21.5 Nm (16 kW) ; 24.2 / 29 Nm (19 kW)
• Power (S1 / S6 40%): 16 / 18 kW (16 kW variant) ; 19 / 22.8 kW (19 kW variant)
• Tool interface: HSK E63
• Cooling: Liquid cooling
• Bearings lubrication: Grease
• Weight: 57 kg
• Through-spindle coolant: No
• Air tool: No
• Vibration sensor: No
• Thermal sensor on front bearings: No
• Shaft kit: Yes
• Aggregate anti-rotation flange: Available on request
