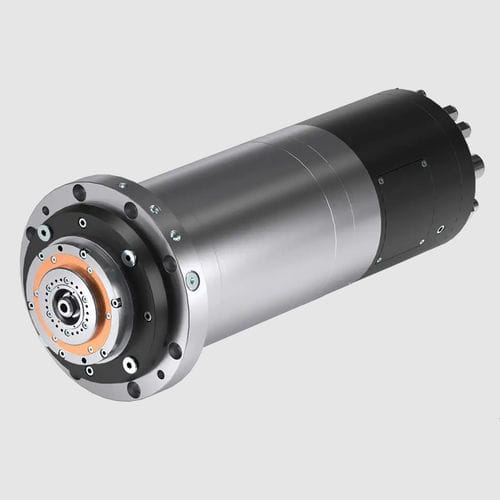

Machining motor spindle ES332 medium millingmotorizedliquid-cooled
Add to favorites
Compare this product
Characteristics
- Function
- medium milling, machining
- Drive system
- motorized
- Lubrication/cooling
- liquid-cooled
- Other characteristics
- with automatic clamping system, for woodworking
- Rotational speed
24,000 rpm, 32,000 rpm
(150,796.4474 rad.min-1, 201,061.9298 rad.min-1)- Diameter
105 mm
(4.1 in)
Description
Motor type
Asynchronous
Torque S1/S6 (40%) [Nm]
10,3 / 12,4
Power S1/S6 (40%) [kW]
13 / 15,6
Tool interface
HSK E40 / E40
Cooling
Liquid
Bearings lubrication
Grease / Air Oil
Weight [kg]
43
Coolant through shaft
Yes
Vibration sensor
No
Elongation sensor
No
Shaft clamping
No
Bearing preload function
No
Shaft kit
No
Cooling housing
-
Catalogs
No catalogs are available for this product.
See all of HSD‘s catalogsOther HSD products
