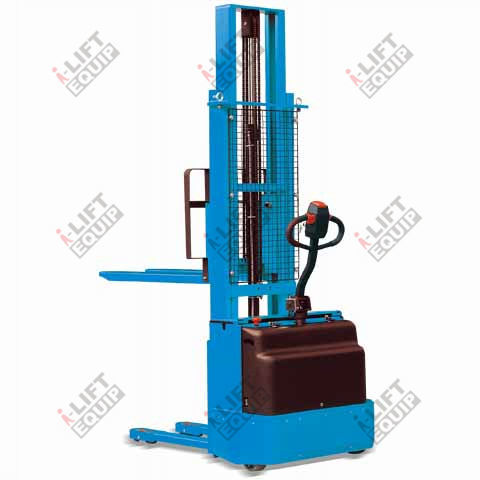

Electric stacker truck FE series

battery-powered24 Vfor materials handling

Overview
Available with DC or AC drive technology, the FE/FEAC full electric stacker is designed for industrial material handling requiring high lift heights and capacities. Optional traction battery available.

Key features

• Designed for heavy-duty, intensive applications
• Curtis electronic control system
• Powerpack and drive wheel manufactured in Europe
• Drive unit with electromagnetic brake
• Maintenance-free AC drive motor available
• Conforms to EN1757-1:2001 and EN1726
• Optional traction battery: 240Ah / 24V

Available models (table)
i-LIFT NO. | Model No. | Capacity kg(lb.) | Min. Fork Height mm(in.) | Max. Fork Height mm(in.) | Fork Length mm(in.) | Overall Forks Width mm(in.)
1550601 | FE1216 | 1200 (2640) | 90 (3.5) | 1600 (63) | 1150 (45.3) | 540 (21.3)
1550602 | FE1516 | 1500 (3300) | 90 (3.5) | 1600 (63) | 1150 (45.3) | 540 (21.3)
1550603 | FE1224 | 1200 (2640) | 90 (3.5) | 2450 (96.5) | 1150 (45.3) | 540 (21.3)
1550604 | FE1524 | 1500 (3300) | 90 (3.5) | 2450 (96.5) | 1150 (45.3) | 540 (21.3)
1550605 | FE1229 | 1200 (2640) | 90 (3.5) | 2900 (114.2) | 1150 (45.3) | 540 (21.3)
1550606 | FE1529 | 1500 (3300) | 90 (3.5) | 2900 (114.2) | 1150 (45.3) | 540 (21.3)
1550607 | FE1231 | 1200 (2640) | 90 (3.5) | 3100 (122) | 1150 (45.3) | 540 (21.3)
1550608 | FE1531 | 1500 (3300) | 90 (3.5) | 3100 (122) | 1150 (45.3) | 540 (21.3)
1550609 | FE1233 | 1200 (2640) | 90 (3.5) | 3300 (129.9) | 1150 (45.3) | 540 (21.3)
1550610 | FE1533 | 1500 (3300) | 90 (3.5) | 3300 (129.9) | 1150 (45.3) | 540 (21.3)
1550611 | FE1216AC | 1200 (2640) | 90 (3.5) | 1600 (63) | 1150 (45.3) | 540 (21.3)
1550612 | FE1516AC | 1500 (3300) | 90 (3.5) | 1600 (63) | 1150 (45.3) | 540 (21.3)
1550613 | FE1224AC | 1200 (2640) | 90 (3.5) | 2450 (96.5) | 1150 (45.3) | 540 (21.3)
1550614 | FE1524AC | 1500 (3300) | 90 (3.5) | 2450 (96.5) | 1150 (45.3) | 540 (21.3)
1550615 | FE1229AC | 1200 (2640) | 90 (3.5) | 2900 (114.2) | 1150 (45.3) | 540 (21.3)
1550616 | FE1529AC | 1500 (3300) | 90 (3.5) | 2900 (114.2) | 1150 (45.3) | 540 (21.3)
1550617 | FE1231AC | 1200 (2640) | 90 (3.5) | 3100 (122) | 1150 (45.3) | 540 (21.3)
1550618 | FE1531AC | 1500 (3300) | 90 (3.5) | 3100 (122) | 1150 (45.3) | 540 (21.3)
1550619 | FE1233AC | 1200 (2640) | 90 (3.5) | 3300 (129.9) | 1150 (45.3) | 540 (21.3)
1550620 | FE1533AC | 1500 (3300) | 90 (3.5) | 3300 (129.9) | 1150 (45.3) | 540 (21.3)

Technical specifications

• Drive technology: DC or AC (AC drive motor available, maintenance-free)
• Electronic control: Curtis electronic control system
• Drive unit: electromagnetic brake
• Powerpack and drive wheel: European-made
• Standards: Conforms to EN1757-1:2001 and EN1726
• Typical capacities: 1200 kg (2640 lb) and 1500 kg (3300 lb)
• Min. fork height: 90 mm (3.5 in)
• Max. fork height range: 1600 mm (63 in) up to 3300 mm (129.9 in) depending on model
• Fork length (standard): 1150 mm (45.3 in)
• Overall forks width: 540 mm (21.3 in)
• Optional traction battery: 240Ah / 24V
