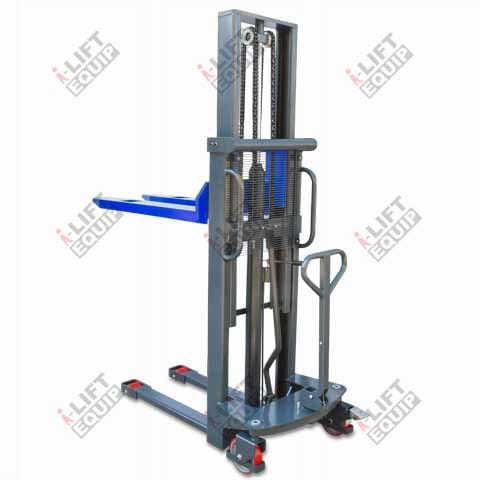

Manual stacker truck HE series

walk-behindfor warehousefor pallet

Overview

• Unique quick-lift technology for fast initial lifting.
• Compact design with precise steel construction.
• One-piece C-section forks for increased strength.
• Top-of-stroke bypass incorporated.
• Conforms to EN1757-1:2001.

Models and key dimensions
i-LIFT No. | Model No. | Capacity kg(lb.) | Min. Fork Height mm(in.) | Max. Fork Height mm(in.) | Fork Length mm(in.) | Overall Forks Width mm(in.)
1560101 | HE1011 | 1000 (2200) | 80 (3.1) | 1100 (43.3) | 1150 (45.3) | 550 (21.7)
1560102 | HE1016 | 1000 (2200) | 80 (3.1) | 1600 (63) | 1150 (45.3) | 550 (21.7)
1560103 | HE1023 | 1000 (2200) | 80 (3.1) | 2350 (92.5) | 1150 (45.3) | 550 (21.7)

Technical specifications

• Series: HE SERIES (Hand Stacker)
• Capacity (standard for listed models): 1000 kg (2200 lb)
• Minimum fork height: 80 mm (3.1 in)
• Maximum fork height (varies by model): 1100 mm (43.3 in) / 1600 mm (63 in) / 2350 mm (92.5 in)
• Fork length: 1150 mm (45.3 in)
• Overall forks width: 550 mm (21.7 in)
• Fork construction: 1 piece C-section forks for increased strength
• Lifting system: Quick lift technology with top-of-stroke bypass
• Design: Compact steel construction
• Standards: Conforms to EN1757-1:2001
