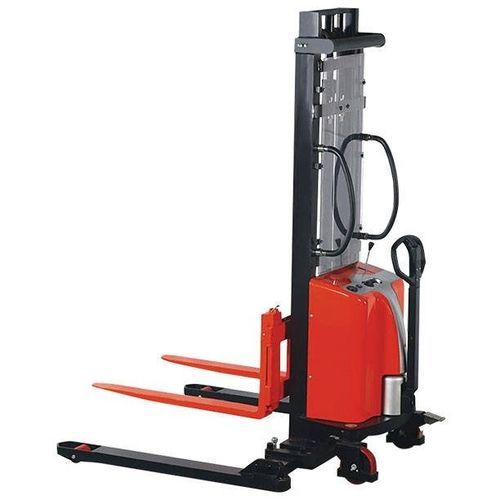

Semi-electric stacker truck HES10 FRLE

walk-behindfor warehousetransport

Product overview
The HES10 FRLE semi-electric stacker is a cost-effective solution designed for efficient material handling, stacking and truck loading/unloading. Powered by a 150 Ah maintenance-free battery and featuring an automatic battery cut-off switch to prevent unauthorized use, the HES series offers long operating autonomy, smooth electric lifting and compact maneuverability.

Details

• 150 Ah maintenance-free battery for extended autonomy
• Automatic battery cut-off switch to prevent unauthorized use
• Three lift height options: 1600 mm, 2500 mm and 3000 mm
• Hand-operated load transport combined with electric lift
• High maneuverability suitable for warehouses, workshops and logistics centers
• Lifting capacity: 1000 kg
• Overall length: 1800 mm
• Width across forks: 570 mm
• Lift speed: 0.14 m/s (laden), 0.09 m/s (unladen)
• Noise level at driver’s ear (according to EN 12053): 67 dB

Advantages

• Industrial-grade construction – Steel frame and hard-chrome plated pistons for extended service life under repeated operations.
• Comprehensive safety features – Mechanical braking, foot protection against pinch points and automatic battery cutoff.
• Precise and efficient operation – 1.5 kW lifting motor with precision control for smooth lifting and reduced load sway.

Models (selection)
HES10/3000FRLE | HES10/3000FRLE | 1000 | 70 | 3000 | 1100 | 570
HES10/2500FRLE | HES10/2500FRLE | 1000 | 70 | 2500 | 1100 | 570
HES10/1600FRLE | HES10/1600FRLE | 1000 | 70 | 1600 | 1100 | 570

Technical specifications

• Lifting capacity: 1000 kg
• Battery: 150 Ah maintenance-free
• Motor (lifting): 1.5 kW
• Lift height options: 1600 mm, 2500 mm, 3000 mm
• Overall length: 1800 mm
• Fork length: 1100 mm
• Overall forks width: 570 mm
• Minimum fork height: 70 mm
• Lift speed: 0.14 m/s (laden), 0.09 m/s (unladen)
• Noise level (EN 12053): 67 dB at driver’s ear
• Construction: industrial-grade steel; hard-chrome plated pistons
• Safety features: mechanical braking, foot protection, automatic battery cutoff
• Operation: manual load transport with electric lift for lifting/lowering
