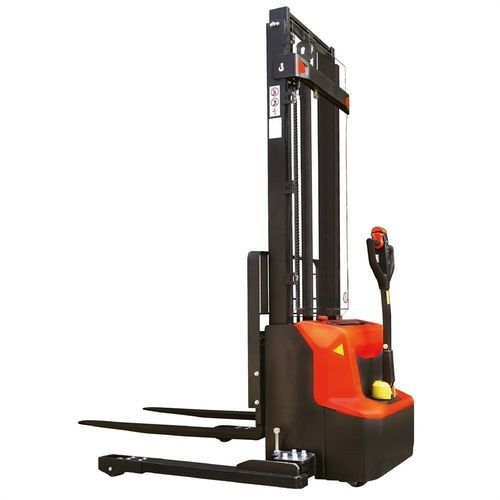

Electric stacker truck PSE12NSLbattery-poweredwalk-behind24 V
Add to favorites
Compare this product
Characteristics
- Energy
- electric, battery-powered
- Operator
- walk-behind
- Voltage
- 24 V
- Applications
- for warehouse, for pallet
- Other characteristics
- straddle
- Carrying capacity
1,200 kg
(2,645.5 lb)- Free lift
50 mm
(2 in)- Height of mast when lowered
Min.: 1,514 mm
(59.6 in)Max.: 3,514 mm
(138.3 in)- Height of mast when raised
Min.: 1,600 mm
(62.99 in)Max.: 3,600 mm
(141.73 in)- Overall width
800 mm
(31.5 in)- Fork width
100 mm
(3.9 in)- Fork length
1,150 mm
(45.28 in)- Fork thickness
40 mm
(1.57 in)- Fork spacing
Min.: 252 mm
(9.92 in)Max.: 800 mm
(31.5 in)- Battery capacity
60 Ah
Description
Product overview
Available models and key dimensions
PSE12N3600SL | 1200 kg | Min fork height 50 mm | Max fork height 3600 mm | Fork length 1150 mm | Overall forks width 800 mm
PSE12N3200SL | 1200 kg | Min fork height 50 mm | Max fork height 3200 mm | Fork length 1150 mm | Overall forks width 800 mm
PSE12N2900SL | 1200 kg | Min fork height 50 mm | Max fork height 2900 mm | Fork length 1150 mm | Overall forks width 800 mm
PSE12N1600SL | 1200 kg | Min fork height 50 mm | Max fork height 1600 mm | Fork length 1150 mm | Overall forks width 800 mm
Technical specifications
- PSE12NSL electric walkie stacker with straddle legs, designed for light-duty pallet handling and compact manoeuvring in warehouses and production areas.
- Standard mast heights: 1514 mm (single), 2814 mm (duplex), 3114 mm (duplex) and 3514 mm (duplex); model variants provide max fork heights of 1600 / 2900 / 3200 / 3600 mm.
- Fork dimensions: 40 mm thickness × 100 mm width × 1150 mm length; adjustable fork spacing 252–800 mm.
- Rated capacity: 1200 kg; maximum gradient: 4% with load, 10% without load.
- Central drive wheel for improved traction; shock-absorbed stabilizing casters and three-point chassis contact enhance lateral stability and operator safety.
- Straddle legs forged in steel with single rollers; width adjustable by four bolts per side (1181 / 1281 / 1381 / 1481 mm).
- Equipped with 24 V / 60 Ah maintenance-free LiFePO4 battery with BMS and supplied with a 25 Ah charger (standard charge ≈ 2.5 h).
- Easy maintenance design and excellent fork visibility to support safe, efficient operations.
Available models and key dimensions
PSE12N3600SL | 1200 kg | Min fork height 50 mm | Max fork height 3600 mm | Fork length 1150 mm | Overall forks width 800 mm
PSE12N3200SL | 1200 kg | Min fork height 50 mm | Max fork height 3200 mm | Fork length 1150 mm | Overall forks width 800 mm
PSE12N2900SL | 1200 kg | Min fork height 50 mm | Max fork height 2900 mm | Fork length 1150 mm | Overall forks width 800 mm
PSE12N1600SL | 1200 kg | Min fork height 50 mm | Max fork height 1600 mm | Fork length 1150 mm | Overall forks width 800 mm
Technical specifications
- Rated capacity: 1200 kg
- Min. fork height: 50 mm
- Max. fork heights (model dependent): 1600 / 2900 / 3200 / 3600 mm; other standard mast configs: 1514 / 2814 / 3114 / 3514 mm
- Fork size: 40 mm (thickness) × 100 mm (width) × 1150 mm (length)
- Adjustable fork spacing: 252–800 mm
- Overall straddle leg widths available: 1181, 1281, 1381, 1481 mm
- Battery: 24 V / 60 Ah LiFePO4 (maintenance-free) with BMS
- Charger: 25 Ah; standard charge time ≈ 2.5 h
- Maximum gradient: 4% with load, 10% without load
- Central driving wheel and shock-absorbed stabilizing casters
- Forged-steel straddle legs and three-point chassis contact for enhanced stability
