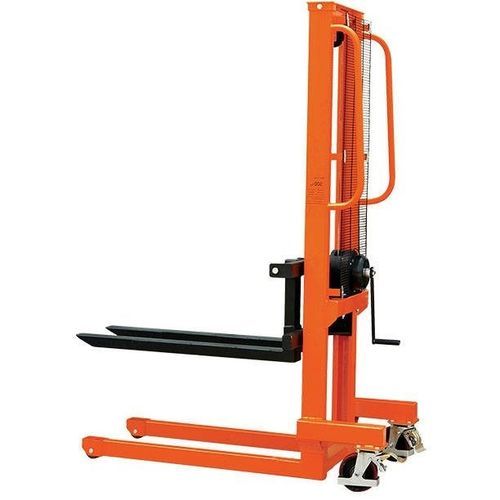

Manual stacker truck WS series

platformtransporthandling

Product overview
The WS manual winch stacker is a compact, service-free lifting solution designed for handling pallets, boxes, crates, sacks and small pallets. The WS series includes a removable platform and a removable height extension frame and can operate from ground level to racking, vans and trucks, also functioning as a sack truck where required.

Key features

• Manual hand-operated winch (hand crank) lifting mechanism
• High-precision height adjustment
• Compact, service-free design (no hydraulic oil/cylinder)
• Removable platform and removable height extension frame
• Can be used as a sack truck for loading/unloading to racking, vans and trucks
• Two capacity models: 500 kg (WS50) and 1,000 kg (WS100)

Models and specifications
i-LIFT NO. | Model No. | Capacity kg(lb.) | Lifting Height mm(in.) | Front Load Roller mm(in.) | Steering Wheel mm(in.) | Net Weight kg(lb.)
— | WS100 | 1000 (2200) | 1500 | Ø80 x 94 | Ø150 x 50 | 182
— | WS50 | 500 (1100) | 1560 | Ø80 x 47 | Ø150 x 40 | 146

Technical specifications

• Series: WS
• Available models: WS50, WS100
• WS50 capacity: 500 kg (1100 lb); lift height: 1560 mm; net weight: 146 kg
• WS100 capacity: 1000 kg (2200 lb); lift height: 1500 mm; net weight: 182 kg
• Front load roller: WS100 Ø80 x 94 mm; WS50 Ø80 x 47 mm
• Steering wheel: WS100 Ø150 x 50 mm; WS50 Ø150 x 40 mm
• Lifting mechanism: manual hand-operated winch (hand crank)
• Design: compact, service-free (no hydraulic cylinder/oil), removable platform and removable height extension frame
