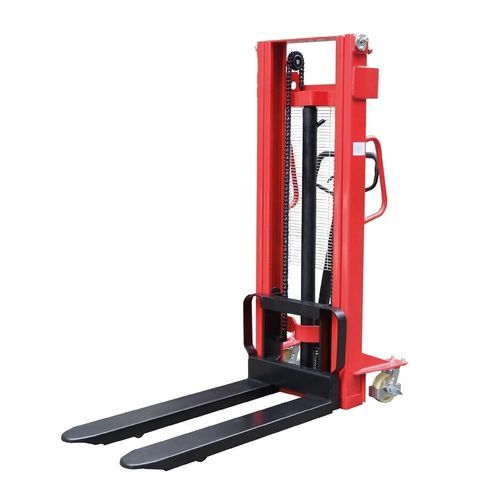

Manual stacker truck HMS series

walk-behindfoot-operatedfor warehouse

Product Overview
The HMS series manual stacker balances performance, durability and cost-effectiveness. Engineered for reliable material handling, it features a steel frame with reinforced forks, and forks and pulley driven by rollers. Operation combines a dual-lifting mechanism and a foot pedal to reduce operator effort. Available capacities range from 500 kg to 1500 kg and an optional adjustable fork is available (320-870 mm). Suitable for workshops, warehouses and retail storage operations.

Details of Manual Stacker

• HMS Series manual lift stacker provides a practical compromise between purchase cost and operational capability while maintaining durability.
• Reinforced forks and a steel pulley assembly are driven by rollers for smooth, precise movement.
• Foot pedal-assisted lifting reduces physical effort required by the operator.
• Optional adjustable fork available (320–870 mm) to accommodate different pallet and load sizes.

Models / Technical Table
i-LIFT NO. | Model No. | Capacity kg(lb.) | Min. Fork Height mm(in.) | Max. Fork Height mm(in.) | Fork Length mm(in.) | Overall Forks Width mm(in.)
— | HMS15/1600 | 1500 (3300) | 90 (3.5) | 1600 (63) | 1150 (45.3) | 560 (22)
— | HMS10/3000 | 1000 (2200) | 90 (3.5) | 3000 (118.1) | 1150 (45.3) | 560 (22)
— | HMS10/2500 | 1000 (2200) | 90 (3.5) | 2500 (98.4) | 1150 (45.3) | 560 (22)
— | HMS10/1800 | 1000 (2200) | 90 (3.5) | 1800 (70.9) | 1150 (45.3) | 560 (22)
— | HMS10/1600 | 1000 (2200) | 90 (3.5) | 1600 (63) | 1150 (45.3) | 560 (22)
— | HMS05/1600 | 500 (1100) | 90 (3.5) | 1600 (63) | 1150 (45.3) | 560 (22)
— | HMS05/1000 | 500 (1100) | 90 (3.5) | 1000 (40) | 1150 (45.3) | 560 (22)

Characteristics / Technical Specifications

• Capacity range: 500 kg to 1500 kg (see table for model details).
• Minimum fork height: 90 mm (3.5 in) for all models.
• Maximum fork height: 1000 mm to 3000 mm depending on model.
• Fork length: 1150 mm (45.3 in) for listed models.
• Overall forks width: 560 mm (22 in) for listed models.
• Construction: steel frame with reinforced forks for industrial use.
• Lifting mechanism: dual-lift system with foot pedal; forks and pulley operated by rollers.
• Optional adjustable fork: 320–870 mm.
