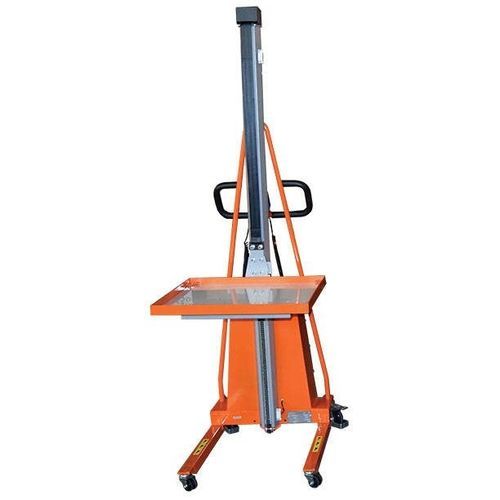

Forklift truck fork positioner E series

Product overview
The E-Series Electric Work Positioner is a compact semi-electric lifting solution for industrial material handling. It enables controlled lifting, lowering and positioning of loads with minimal operator effort, improving ergonomics and workflow in production, warehousing and processing areas.

Features

• AISI 304 stainless steel option for sterile or food-processing environments
• Battery options: 12Ah and 20Ah (maintenance-free sealed batteries)
• Compact, lightweight and highly manoeuvrable for narrow aisles and confined spaces
• Lift range suitable from ground level to above shoulder height
• Optional integrated weighing system
• Automatic electronic overload protection (E series)
• Built-in automatic charger

Details of Work Positioner

• Semi-electric operation with user-friendly controls
• Automatic overload protection and safety relay located at base
• Lift speed (no load): 110 mm/s
• Electric lift available in 1500 mm, 1700 mm or 1800 mm depending on model
• Removable platform and robust, compact construction
• Load capacity options: 100 kg, 150 kg or 250 kg

Options / Accessories

• Load roller platform
• Ball transfer platform
• Container holder
• Reel mandrel
• Platform V-cradle
• Reel rotator
• Twin mandrel
• Jib arm with lifting hook
• Weighing system (optional)

Models / Technical table
Model No. | Type | Capacity kg (lb.) | Min. Fork Height mm (in.) | Max. Fork Height mm (in.) | Load Centre mm (in.)
E250 | semi-electric | 250 | 230 | 1800 | 235
E150 | semi-electric | 150 | 230 | 1500 | 235
E100 | semi-electric | 100 | 230 | 1700 | 235

Technical specifications

• Series: E-Series
• Type: semi-electric
• Models: E100, E150, E250
• Capacities: 100 kg / 150 kg / 250 kg
• Min. fork height: 230 mm (all models)
• Max. fork height: E150 = 1500 mm, E100 = 1700 mm, E250 = 1800 mm
• Load centre: 235 mm
• Lift speed (no load): 110 mm/s
• Battery options: 12Ah and 20Ah (maintenance-free sealed)
• Built-in automatic charger
• Automatic electronic overload protection (E series)
• Safety relay at equipment base
• Removable platform and multiple accessory options
