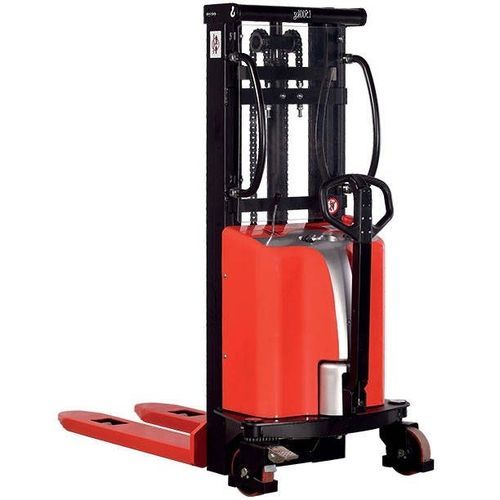

Semi-electric stacker truck HES15 series

battery-poweredwalk-behindfor production

Product Overview

• Semi-electric stacker for lifting and transporting palletized loads in warehouses, production and logistics operations
• Rated capacity 1500 kg (1.5 t) with hand-operated travel and electric lifting
• Four max lift height options: 1600 mm, 2500 mm, 3000 mm, 3500 mm
• Fork length 1100 mm and overall forks width 570 mm
• 150 Ah maintenance-free battery with automatic battery cut-off switch to prevent unauthorized use
• Profiled steel mast with hard chrome piston and adjustable lift chain
• Lift motor 1.5 kW for efficient vertical movement
• Designed for high maneuverability in narrow aisles and compact work areas

Models / Technical Table
- HES15/3500 - 1500 kg - Min. fork height 85 mm - Max. fork height 3500 mm - Fork length 1100 mm - Overall forks width 570 mm
- HES15/3000 - 1500 kg - Min. fork height 85 mm - Max. fork height 3000 mm - Fork length 1100 mm - Overall forks width 570 mm
- HES15/2500 - 1500 kg - Min. fork height 85 mm - Max. fork height 2500 mm - Fork length 1100 mm - Overall forks width 570 mm
- HES15/1600 - 1500 kg - Min. fork height 85 mm - Max. fork height 1600 mm - Fork length 1100 mm - Overall forks width 570 mm

Technical Specifications

• Model: HES15
• Rated capacity: 1500 kg (1.5 t)
• Available max. fork heights: 1600 mm, 2500 mm, 3000 mm, 3500 mm
• Min. fork height: 85 mm
• Fork length: 1100 mm
• Overall forks width: 570 mm
• Battery: 150 Ah maintenance-free
• Automatic battery cut-off switch (anti-unauthorized use)
• Lift motor power: 1.5 kW
• Mast: profiled steel mast
• Piston: hard chrome piston
• Adjustable lift chain
• Operation: hand-operated travel with electric lift

Applications & Safety

• Suitable for warehouses, light industrial workshops, retail logistics and production lines
• Protection features: steering wheel guards and a mechanical parking brake to protect operators' feet
• Maintenance considerations: maintenance-free battery and accessible components for routine checks
• Use cases: pallet handling, order picking at medium heights, internal transport in confined areas
